This bundle deal offers high quality DXF cut files at a great value for those who want to save money and build a set of welding squares themselves.

This SAE version is intended for 1/4" thick steel.

Specifications

Material Thickness: 1/4" (0.25")

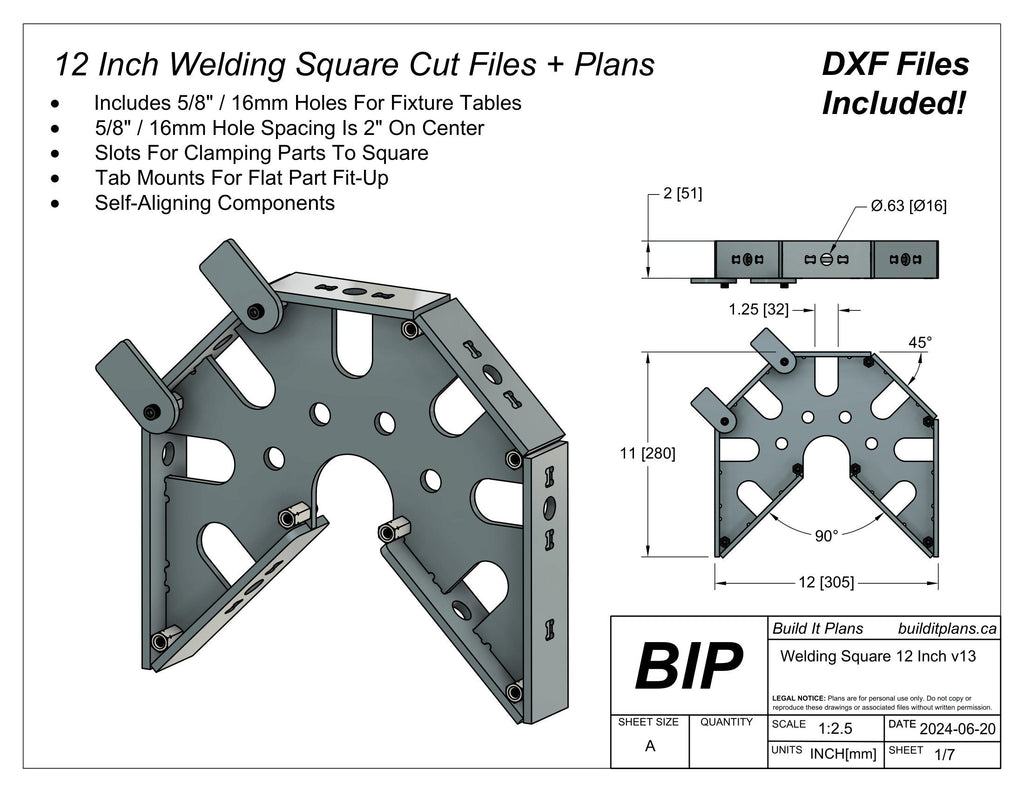

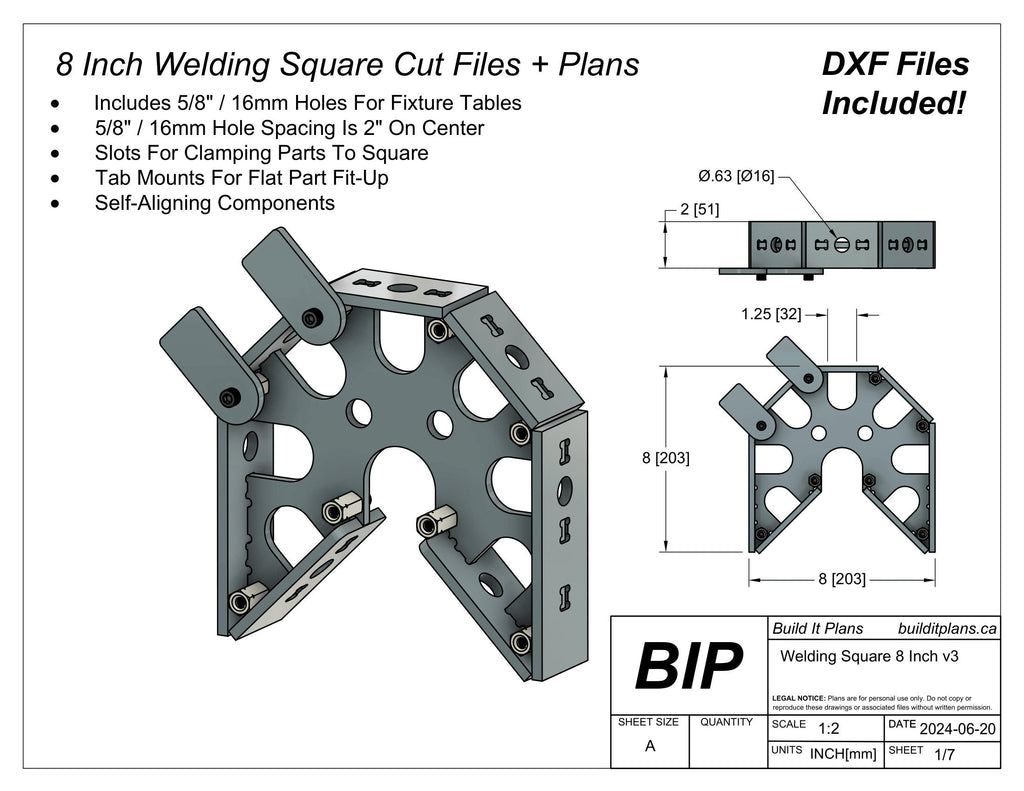

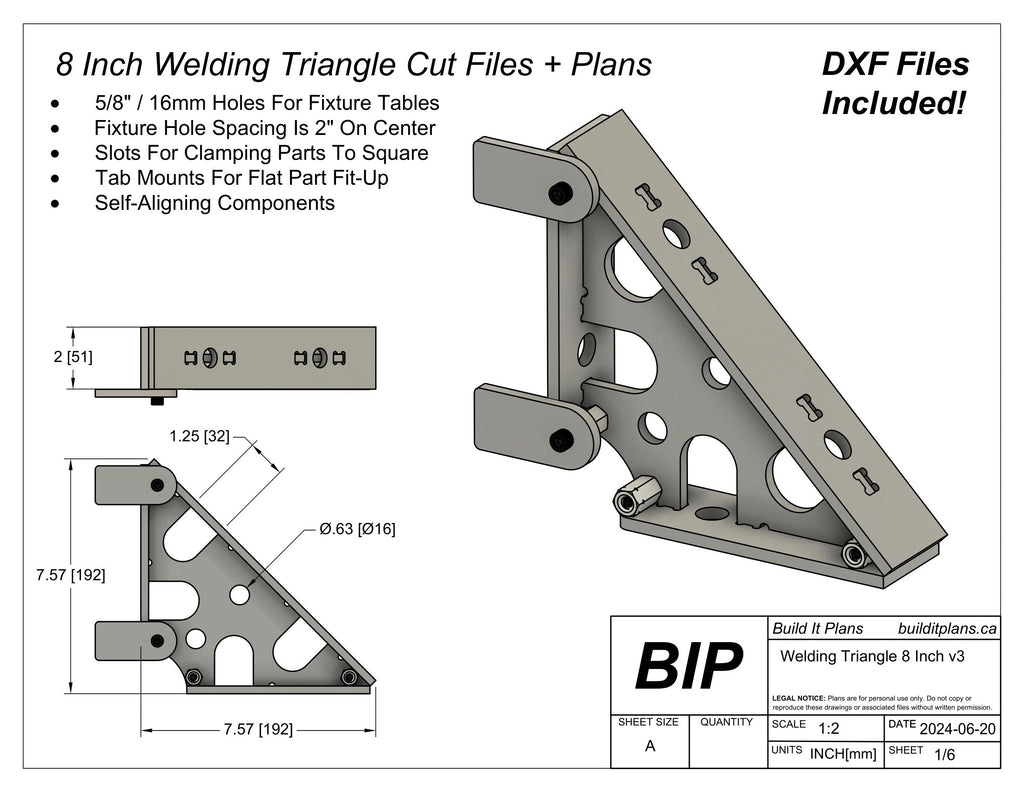

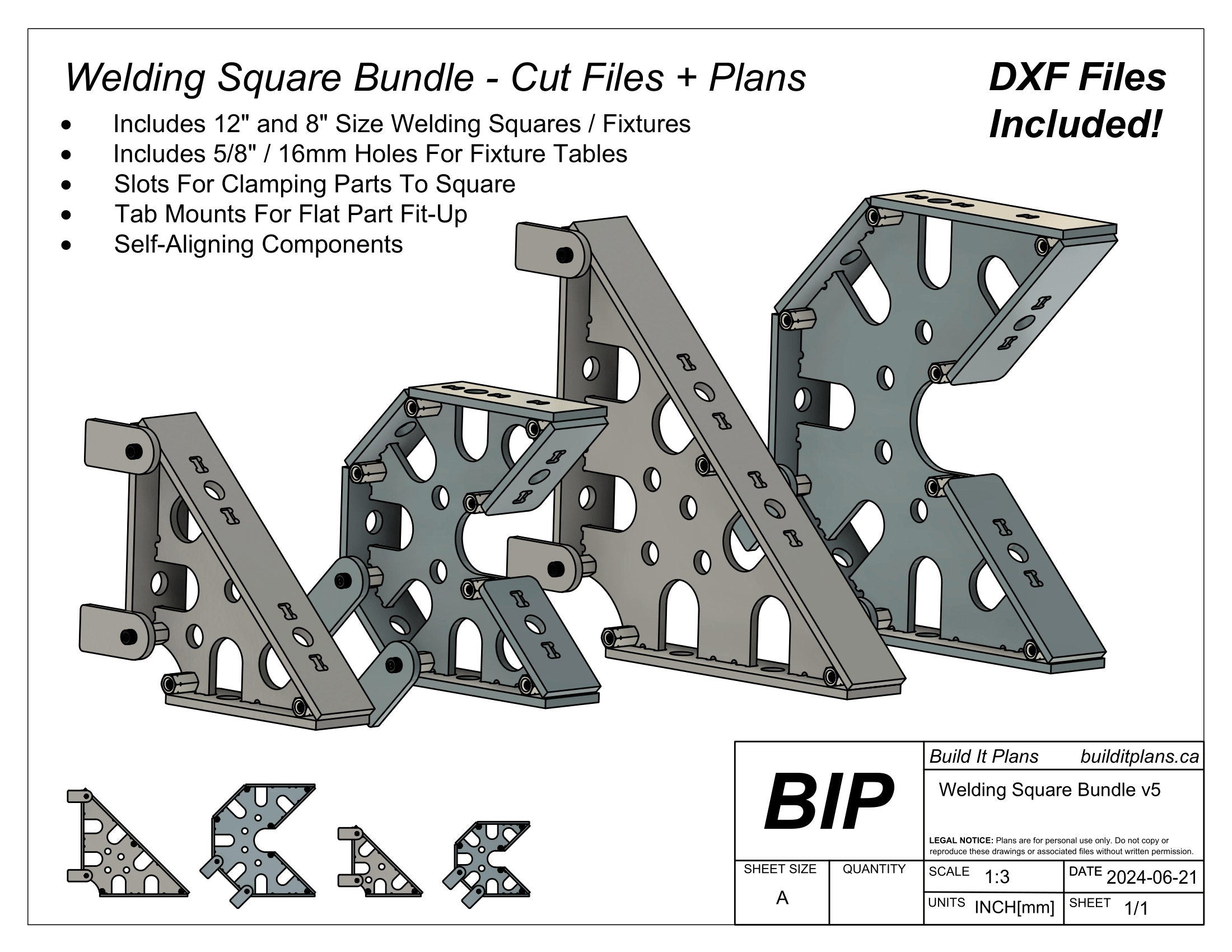

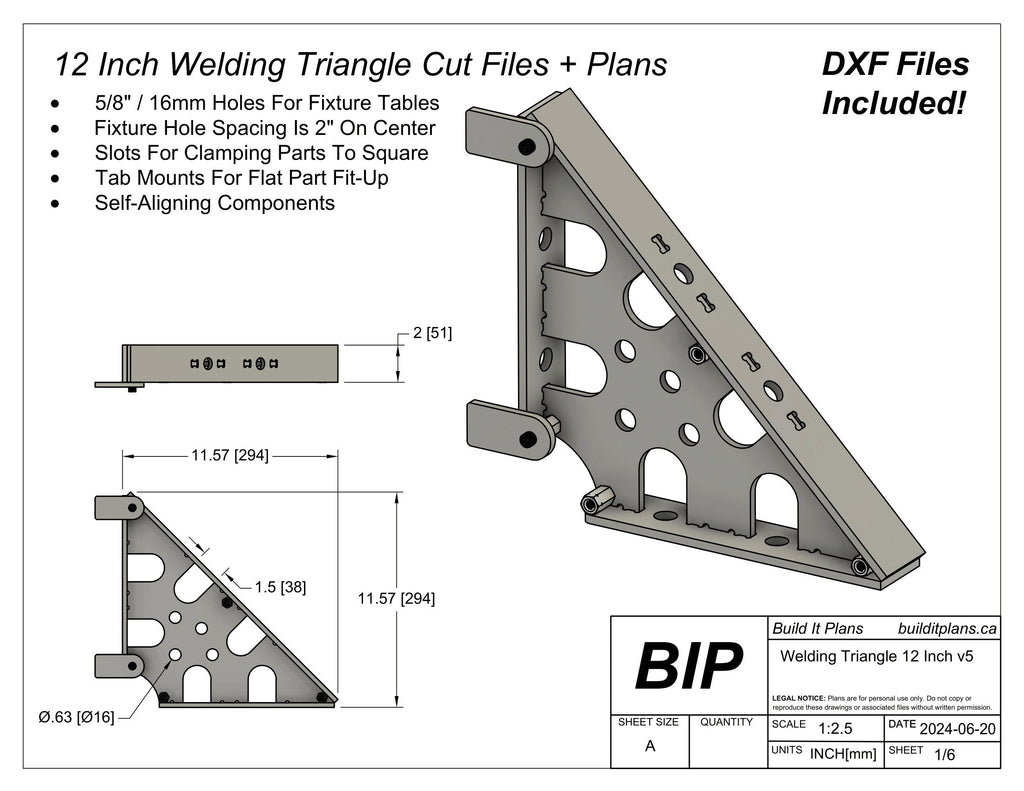

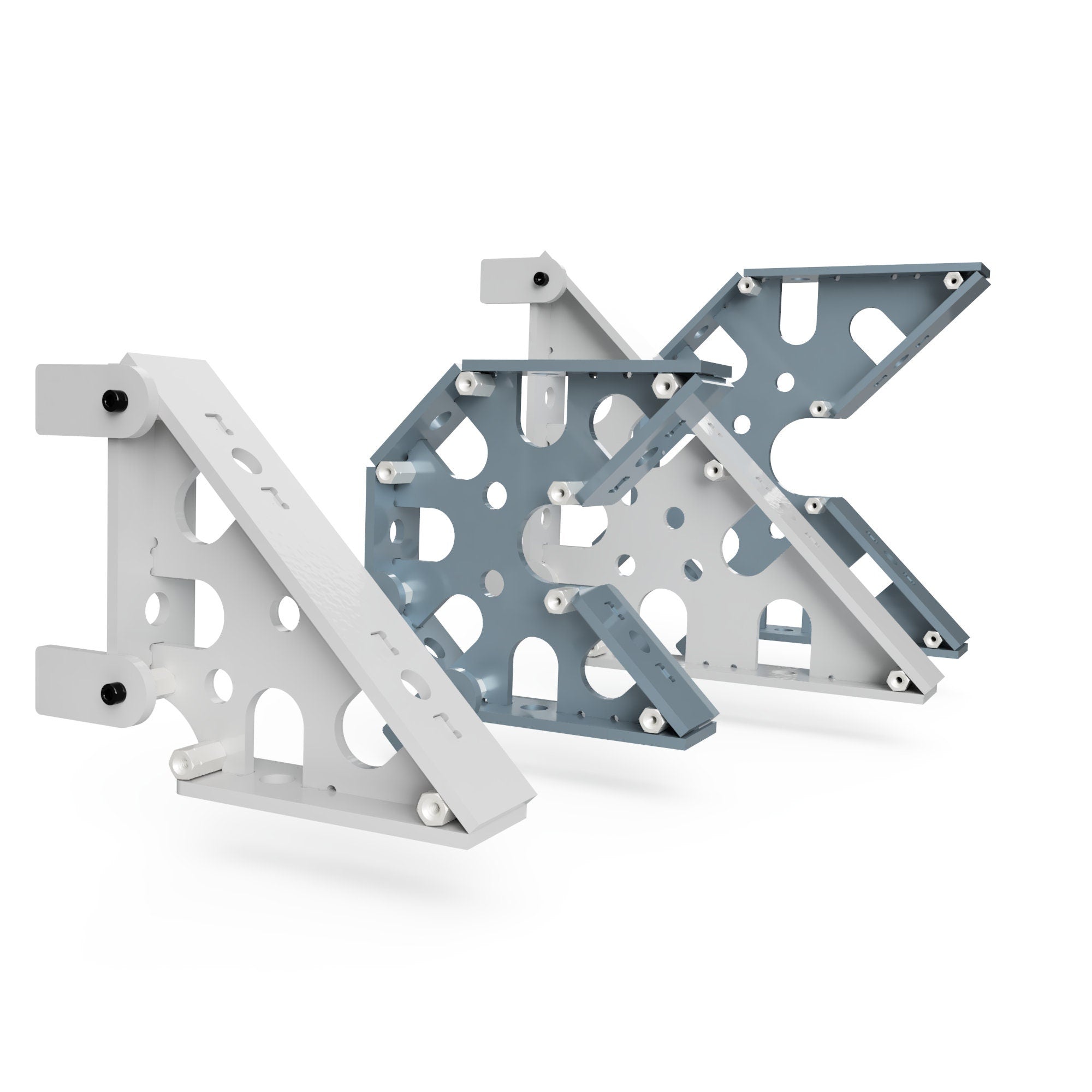

Included Files: 8" triangle, 8" square, 12" triangle and 12" square

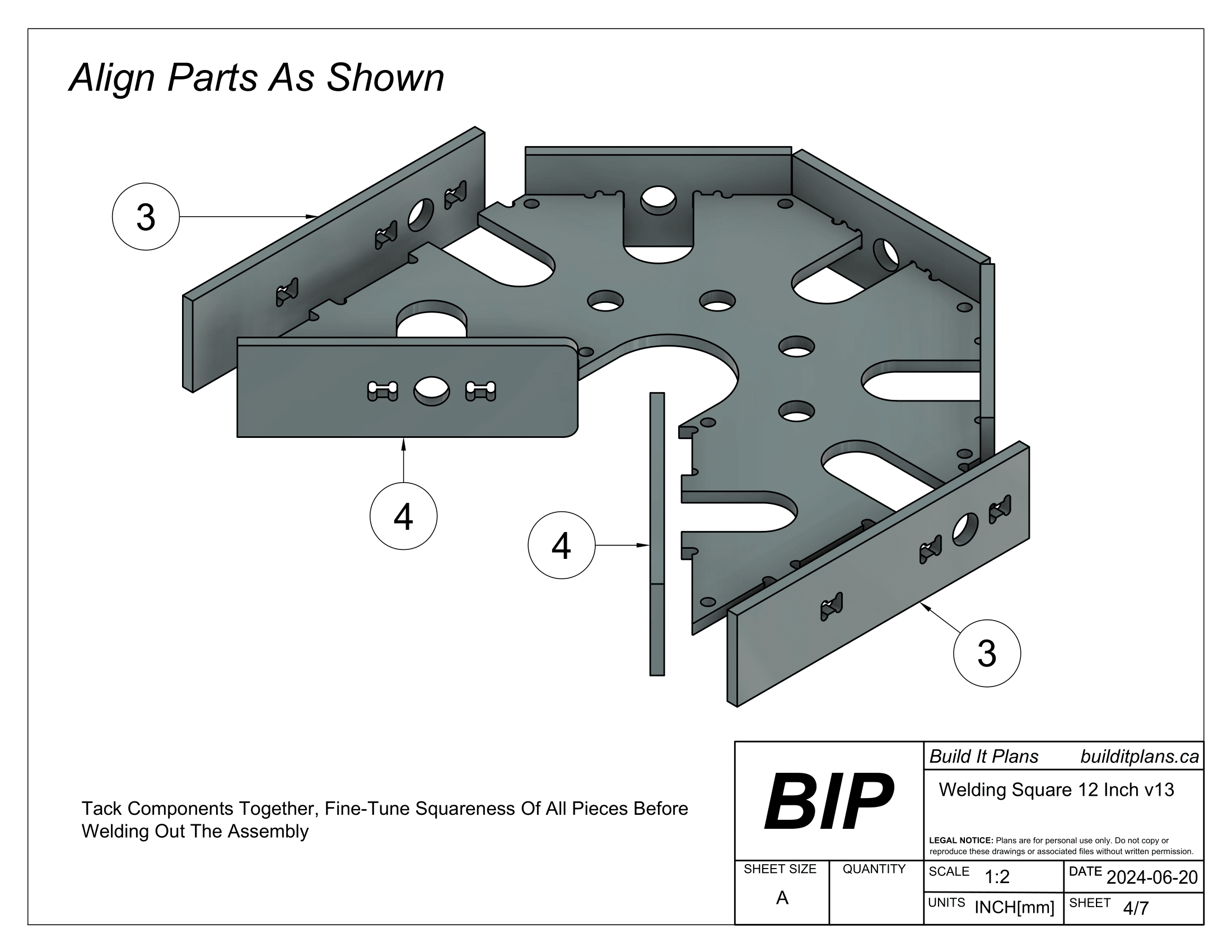

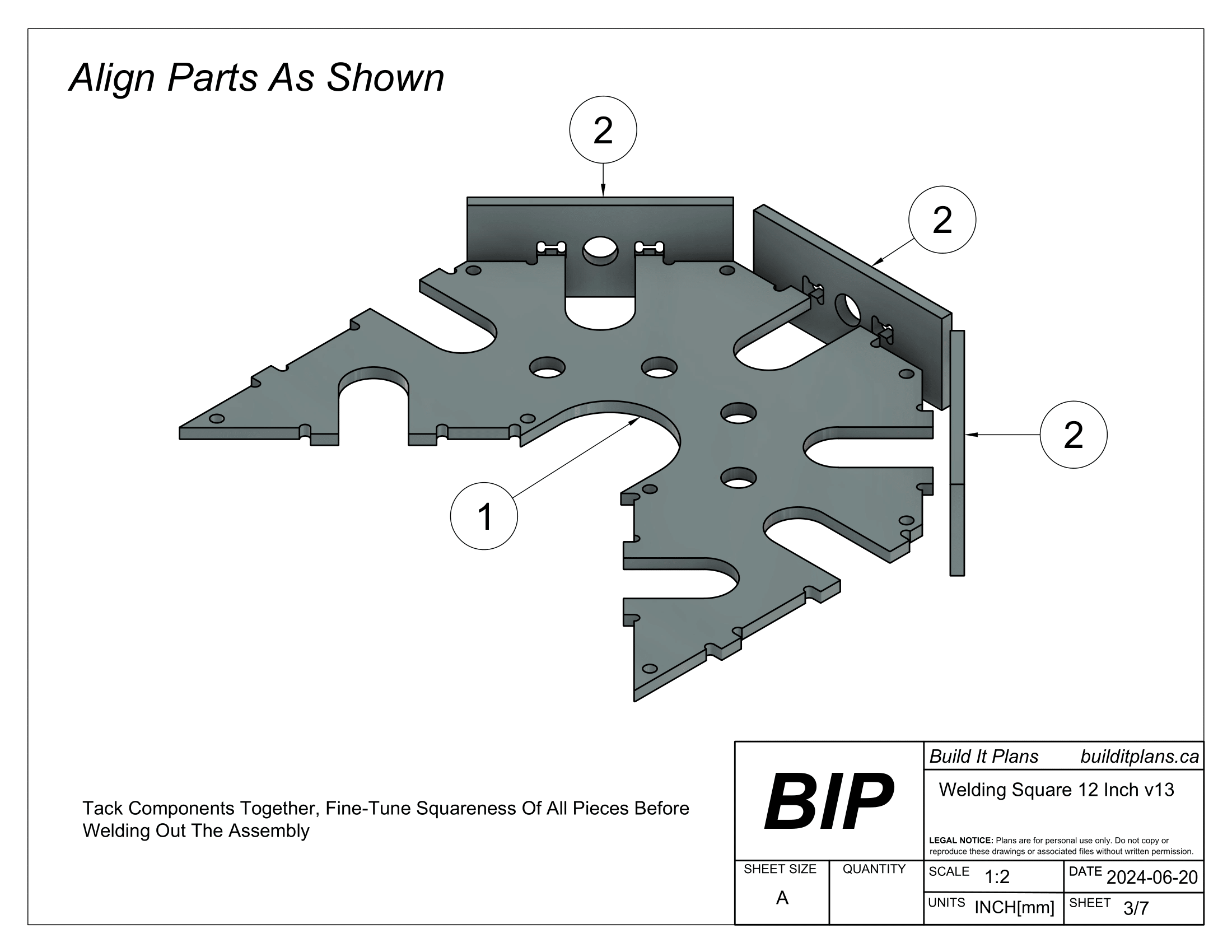

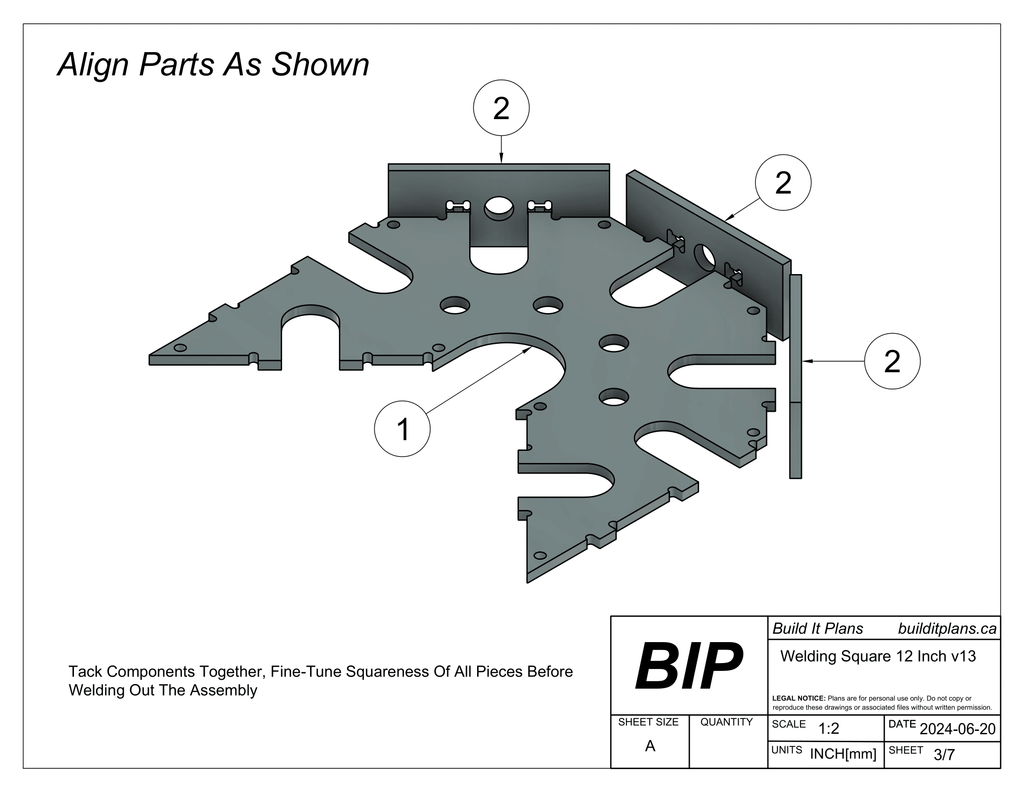

Detailed PDF files included for each version of square

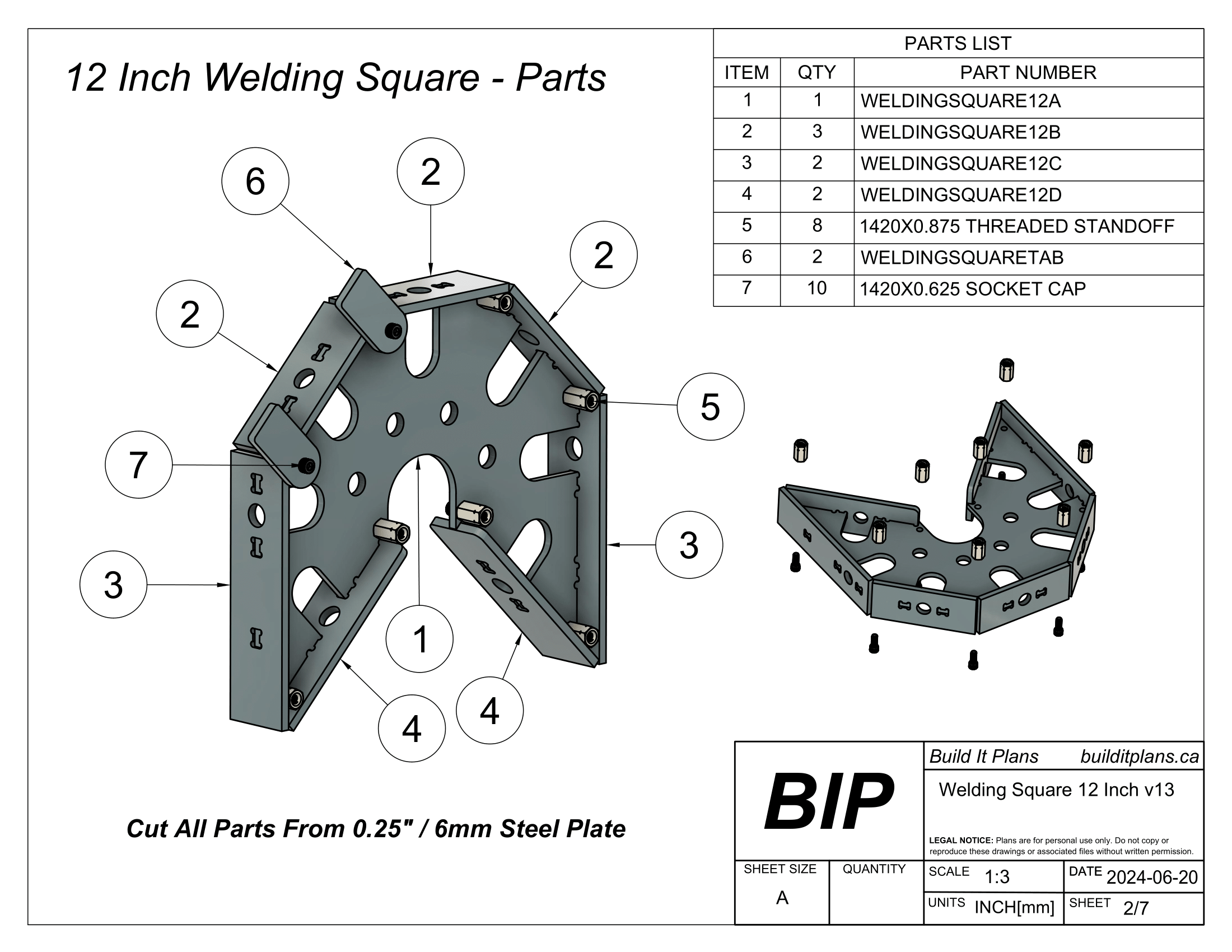

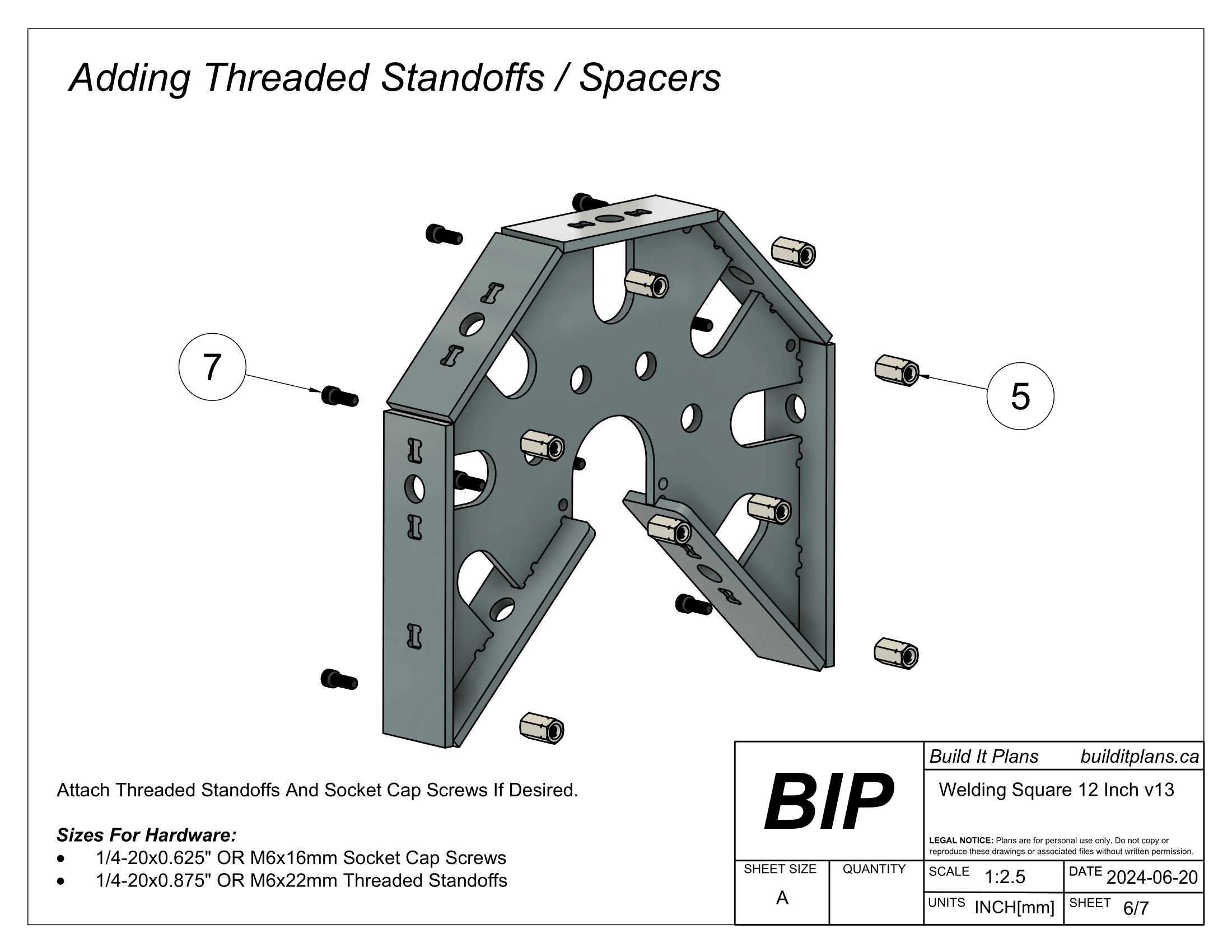

These jigs can interface with 5/8" or 16mm hole fixture tables. The tools feature additional holes for 0.25" or 6mm fasteners and standoffs to attach alignment tabs as well.

There are 45, 90 and 135 degree corners to accommodate various fabrication jobs.

The files include two versions of 5/8" holes sized at 0.625" or 0.630", as well as a 3/4" hole size variant sized at 0.75". The holes are spaced 2" apart on center.

The slot and tab features have a 0.02-0.04" clearance, which should suit laser and waterjet tables very well. Plasma users may need to clean up the tabs if the fit up is tight, depending on the accuracy of your plasma table.

This listing is for digital files only; no physical product is being sold here.
