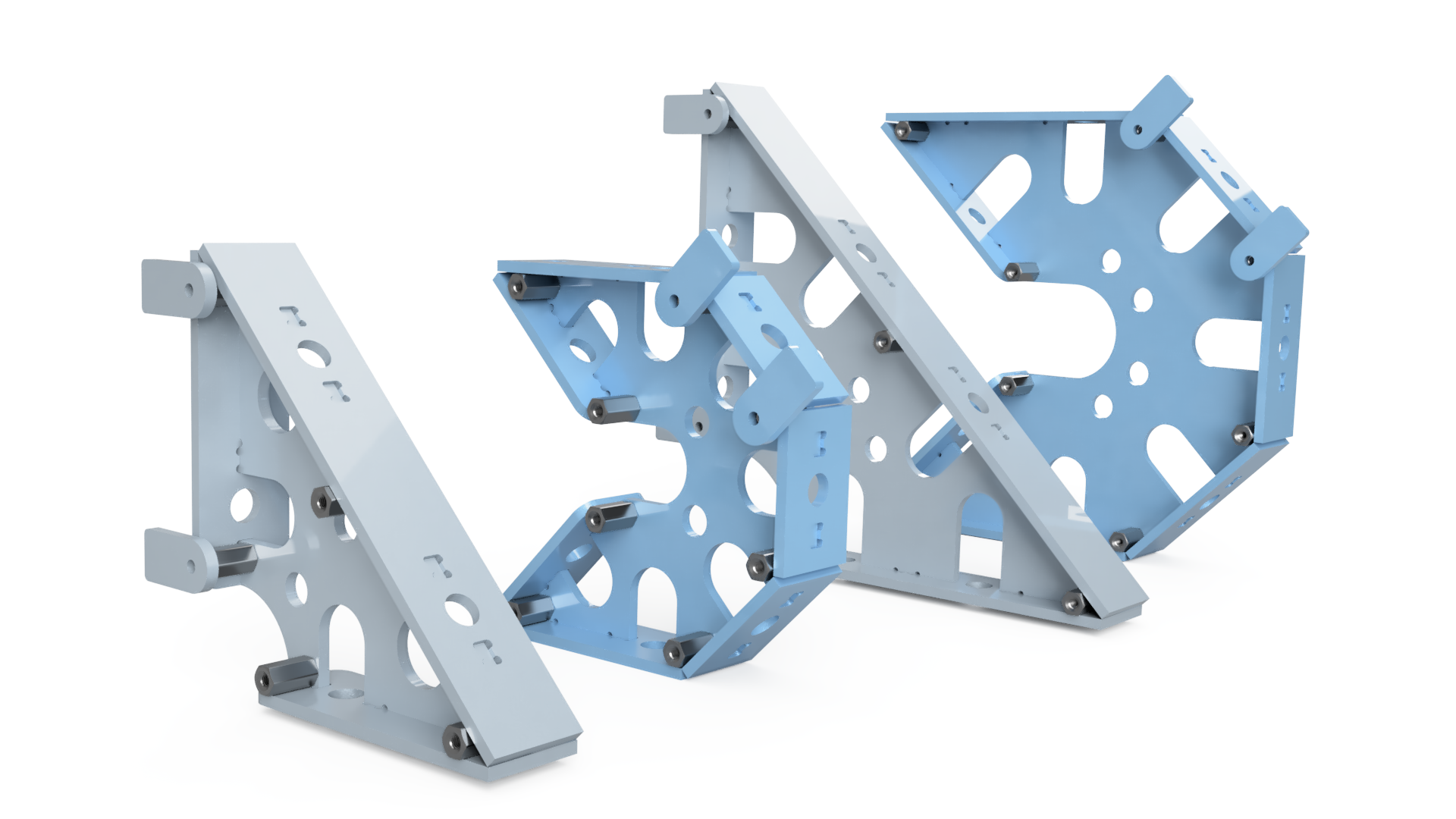

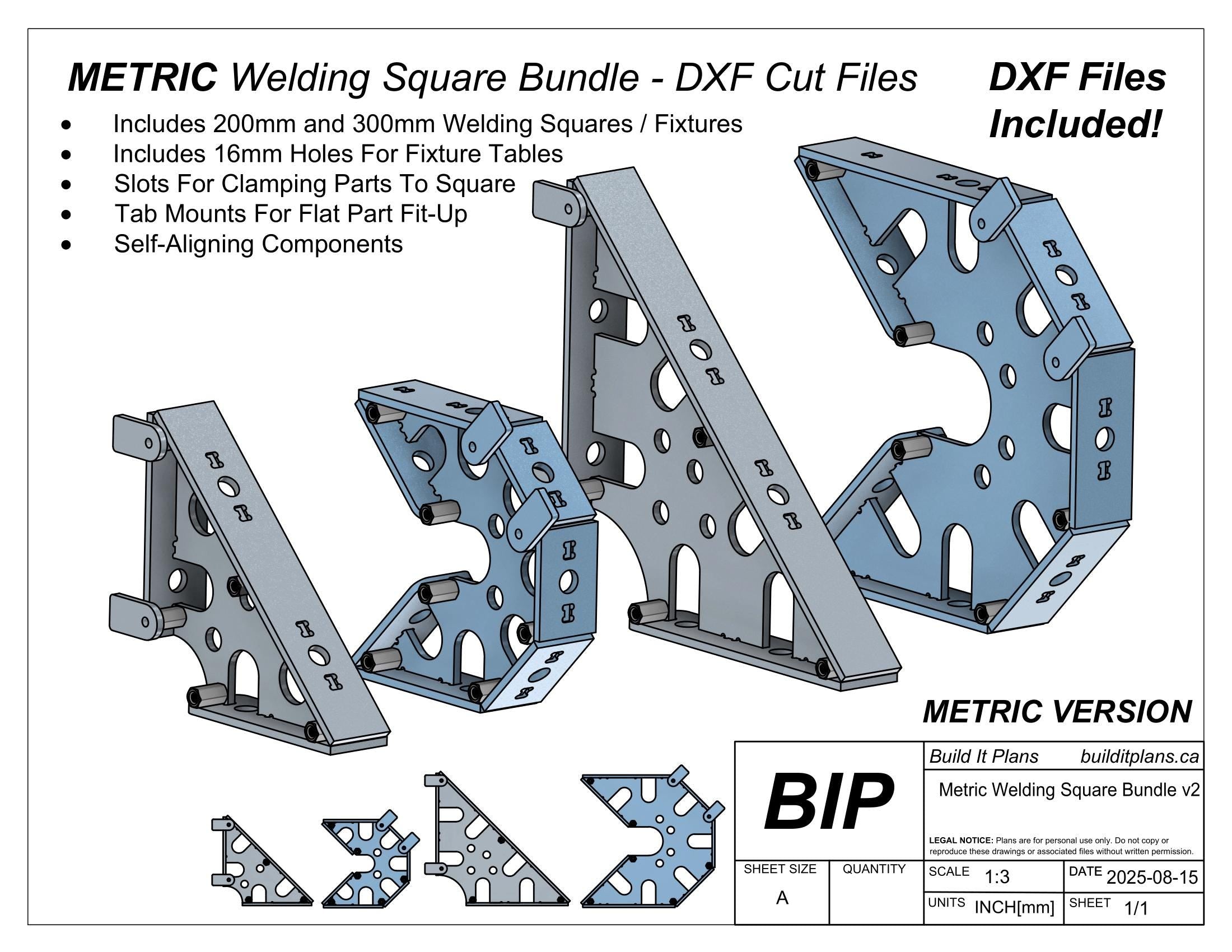

This bundle deal offers high quality DXF cut files at a great value for those who want to save money and build a set of welding squares themselves.

This metric version is intended for 6mm thick steel.

Specifications

Material Thickness: 6mm

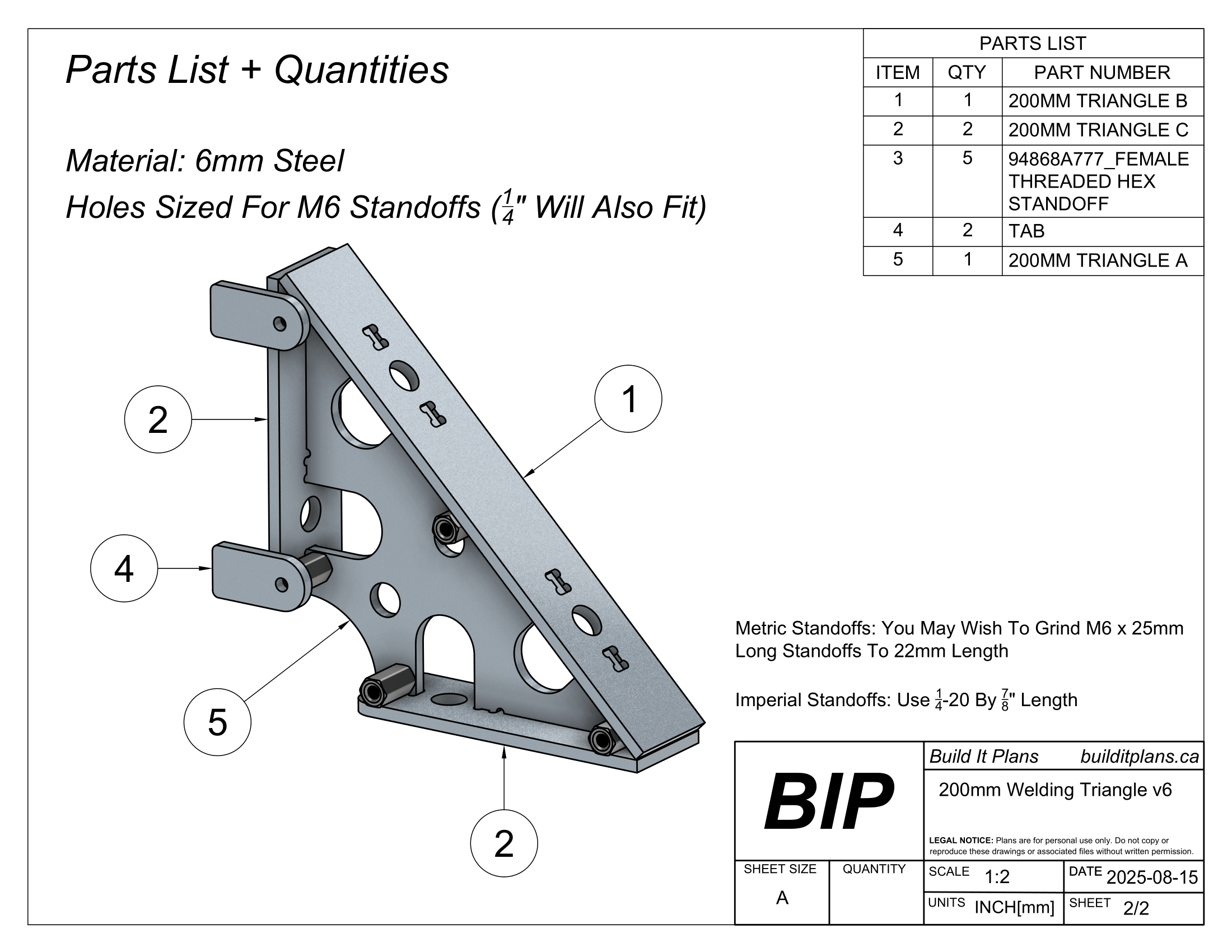

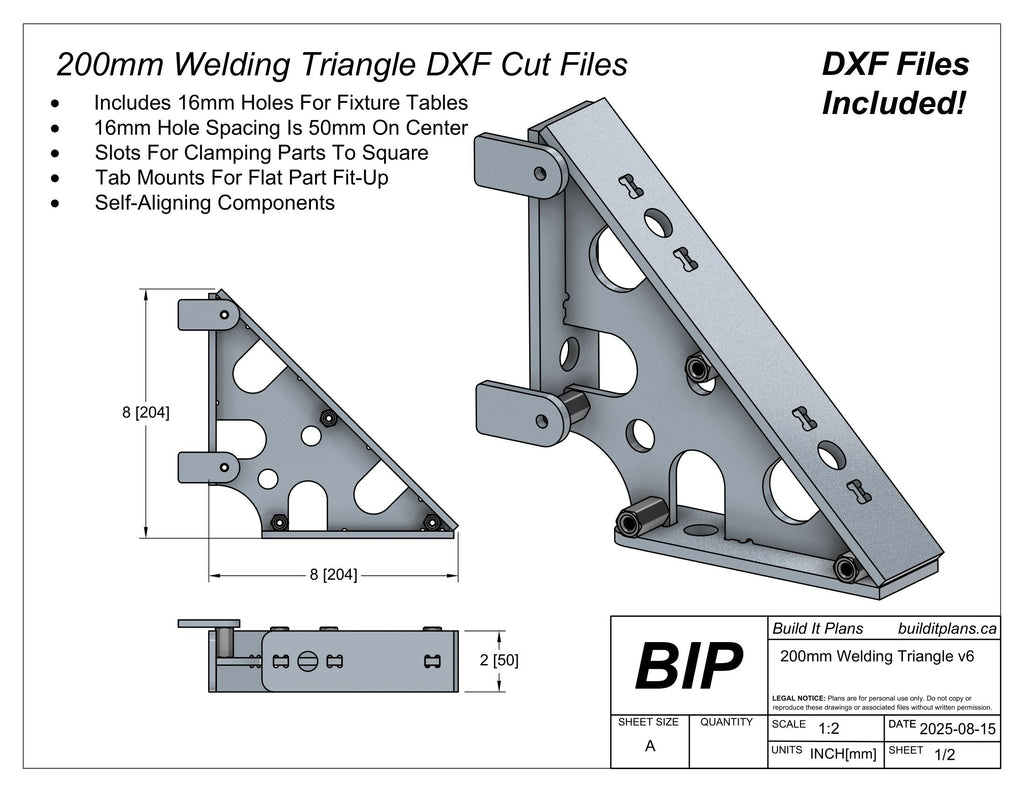

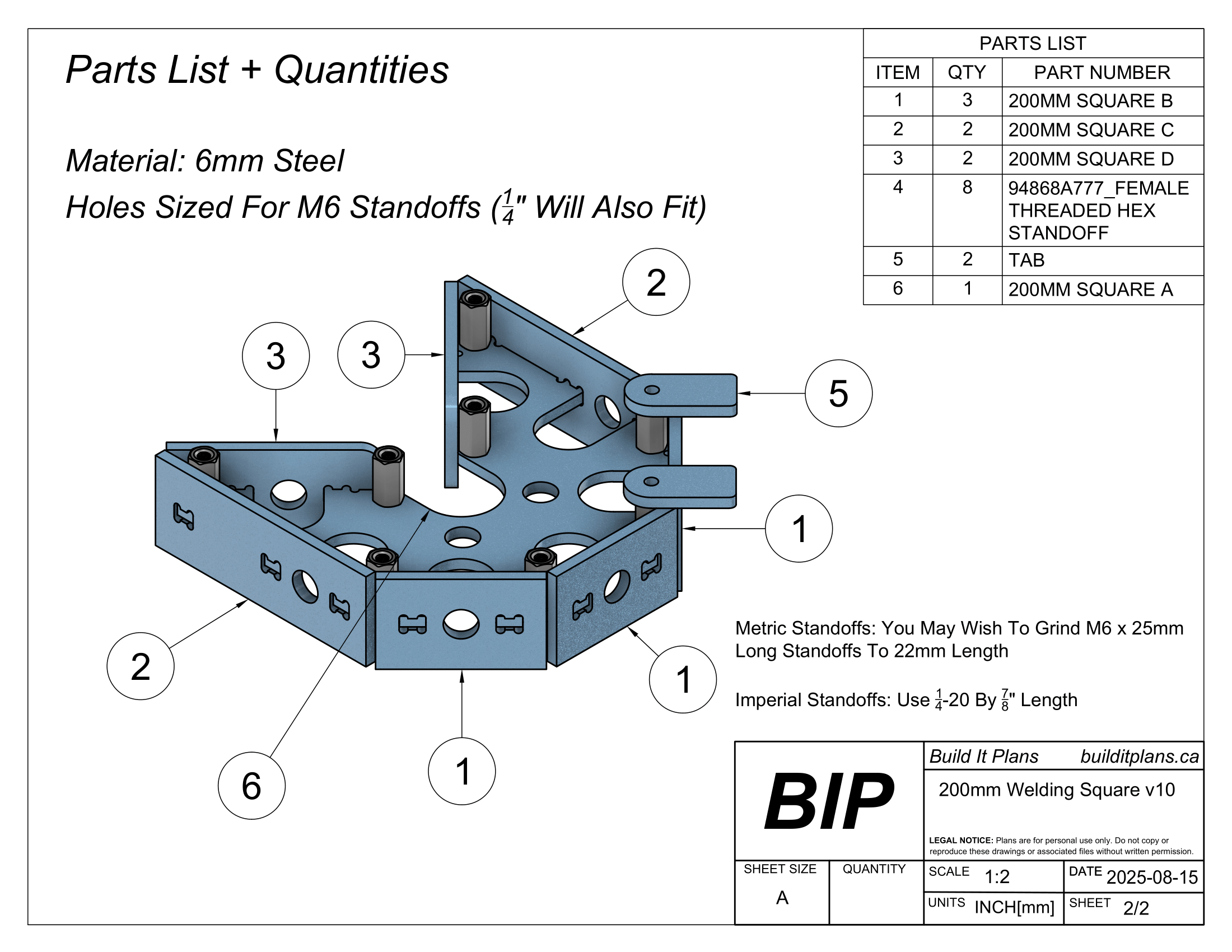

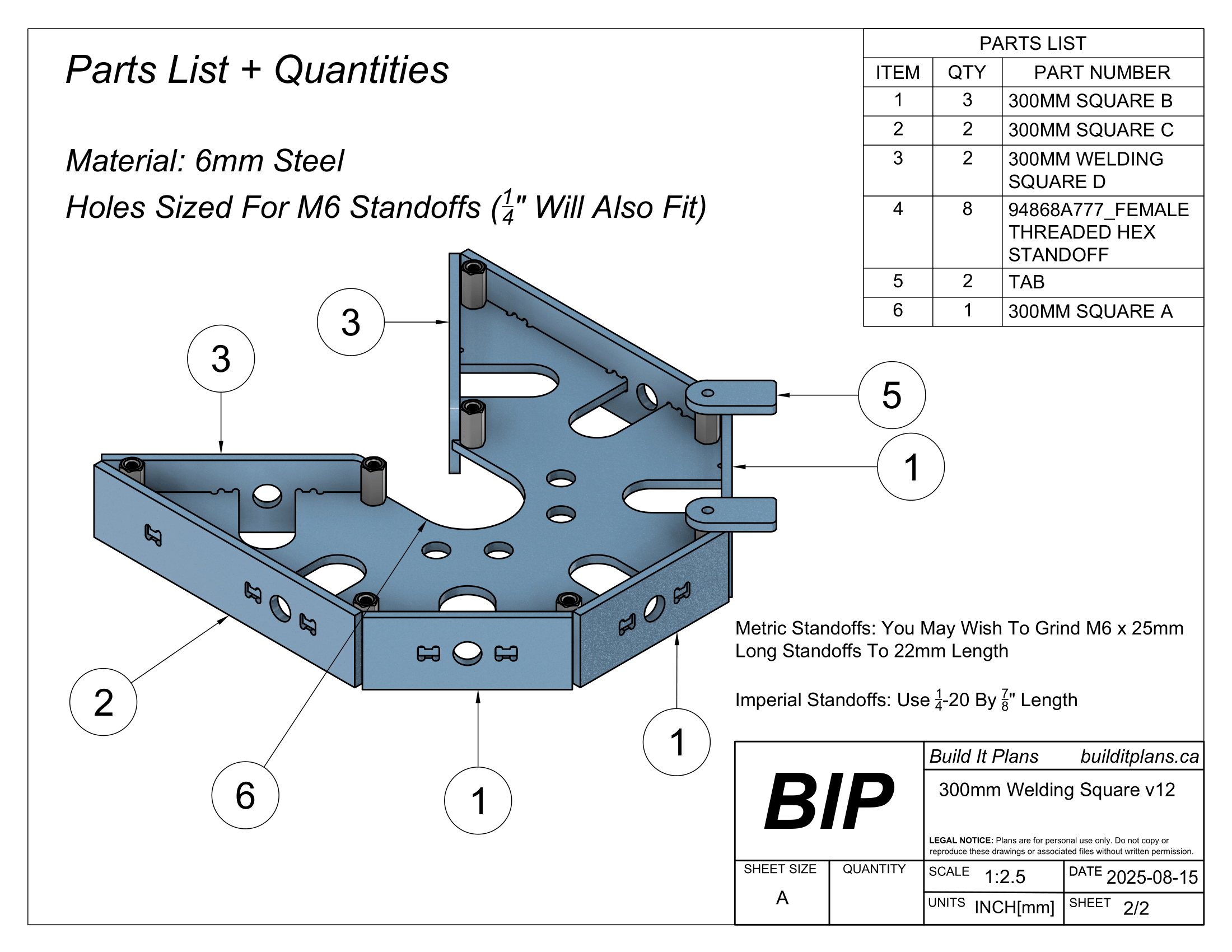

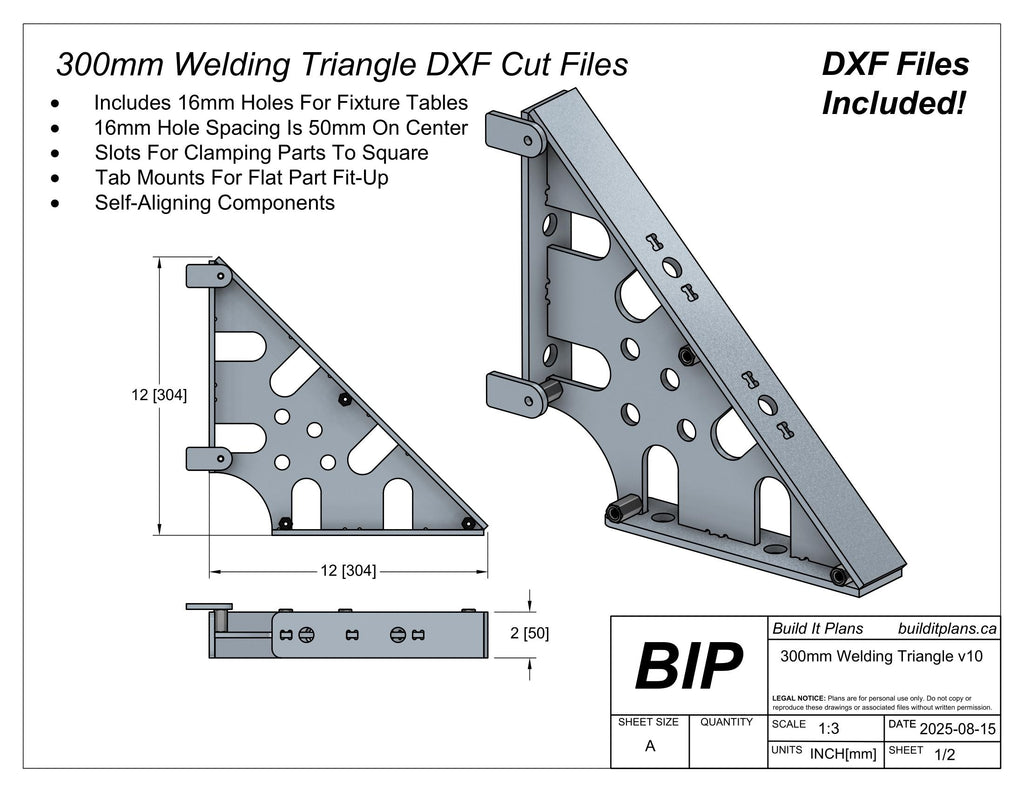

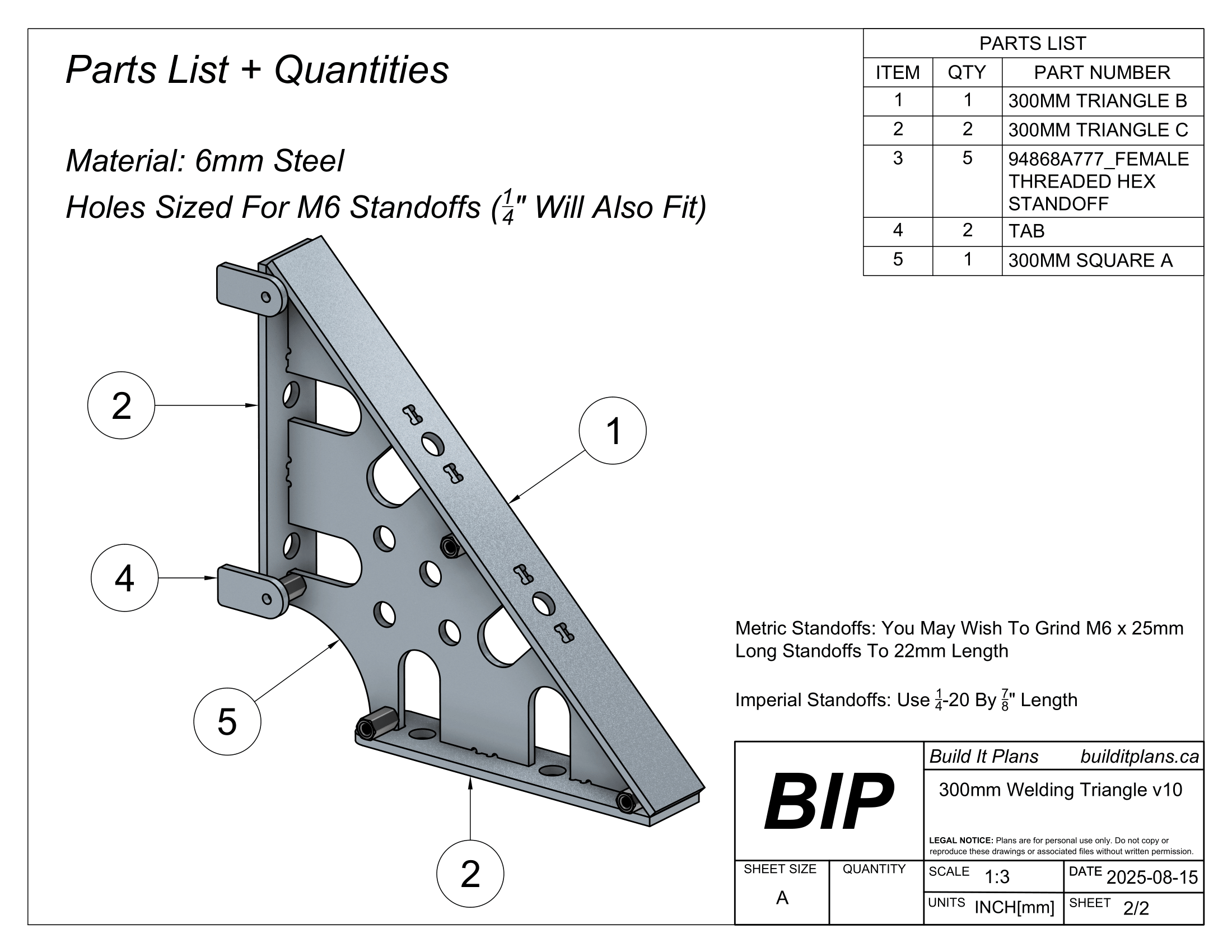

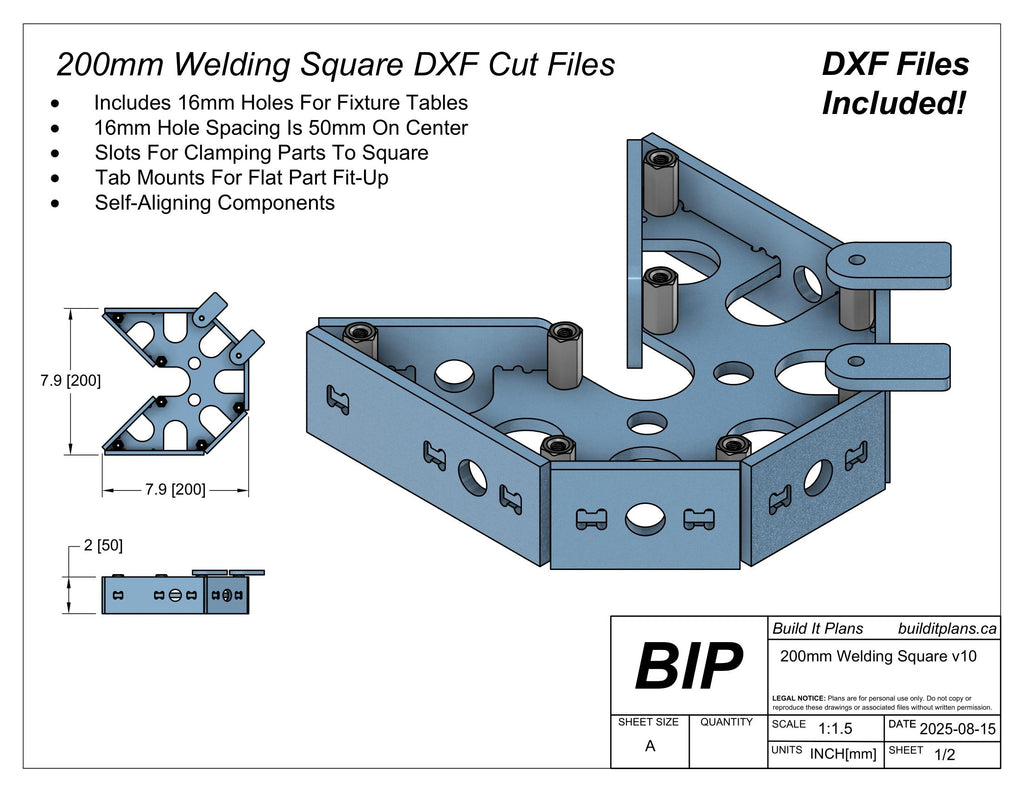

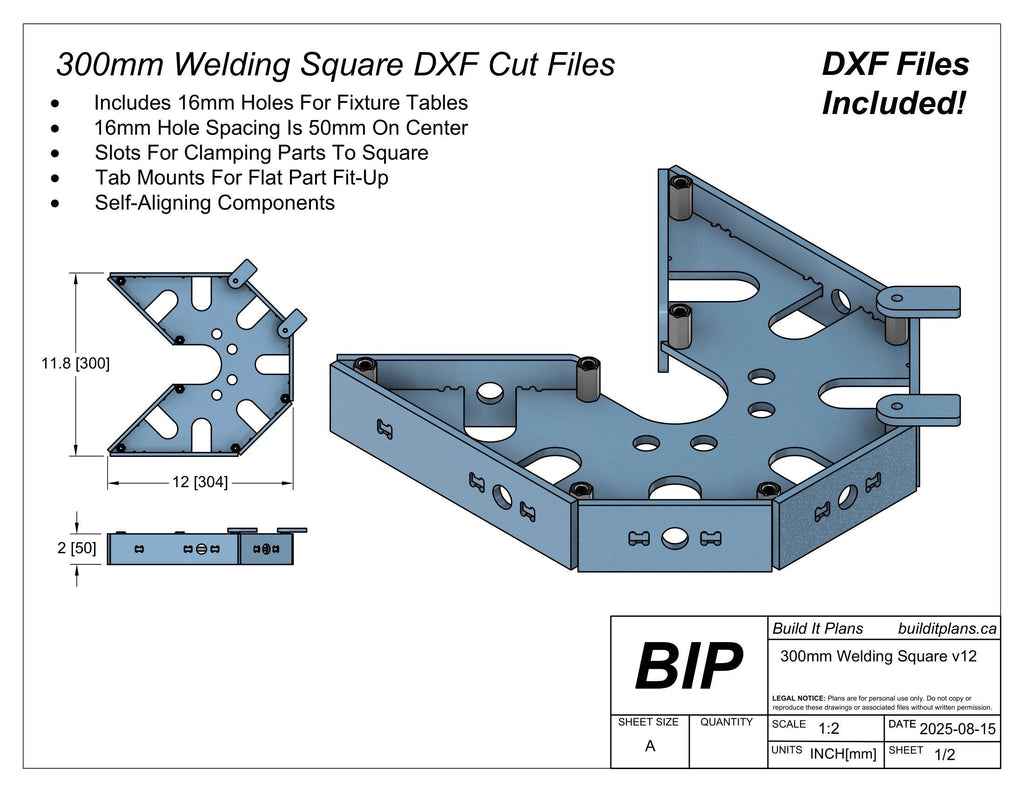

Included Files: 200mm triangle, 200mm square, 300mm triangle, 300mm square

Detailed PDF files included for each version of square

These jigs can interface with 16mm hole fixture tables. The tools feature additional holes for 0.25" or 6mm fasteners and standoffs to attach alignment tabs as well.

There are 45, 90 and 135 degree corners to accommodate various fabrication jobs.

The 16mm holes are sized at 16.25mm for clearance and are spaced 50mm apart on center.

The slot and tab features have a 0.1mm clearance, which should suit laser and waterjet tables very well. Plasma users may need to clean up the tabs if the fit up is tight, depending on the accuracy of your plasma table.

This listing is for digital files only; no physical product is being sold here.
