This 5'x5' (60" x 60") welding table file set includes CNC cut files and PDF instructions to construct your own welding fixture tables from 3/8" steel.

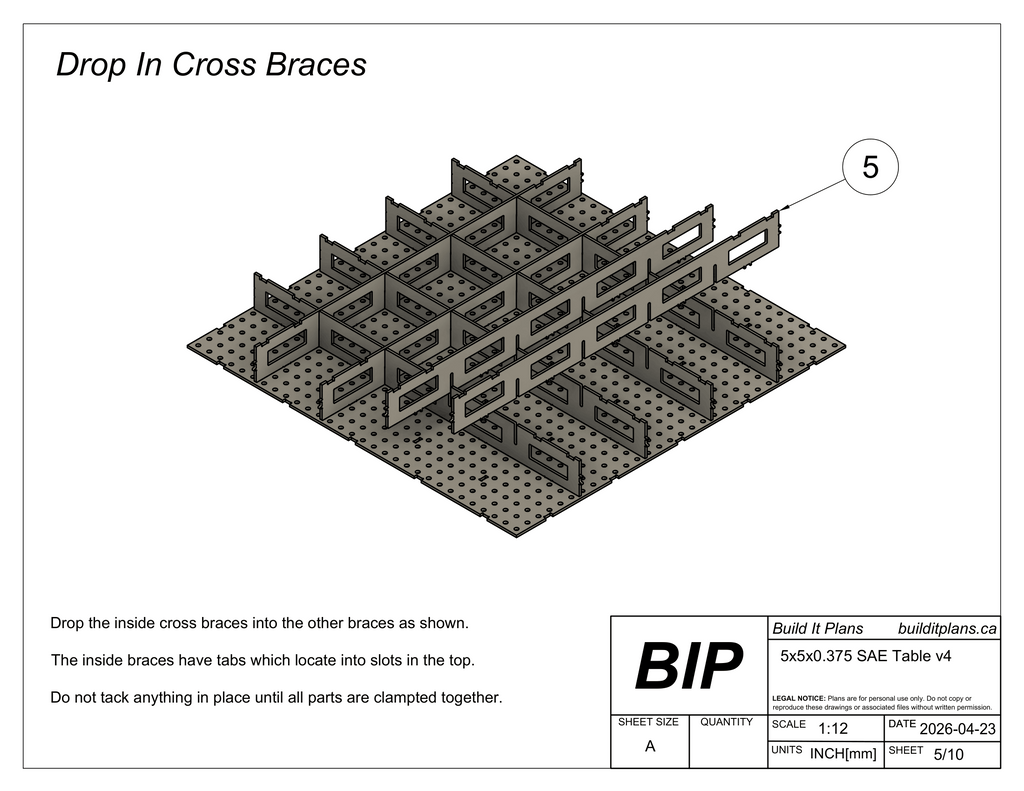

These DIY welding tables have been designed to be cut on laser, waterjet and plasma CNC machines. The components interlock with slot and tab features which make for easy assembly and an accurate end result. You are encouraged to clamp or bolt the table top assembly together before welding it out for maximum flatness.

Making one 5x5 table requires (1.5) 5x10 sheets. The table top piece is a tight fit on 60.25" x 120" sheets; plasma users may need to be careful to ensure the material is zero'd in on the machine properly.


Specifications

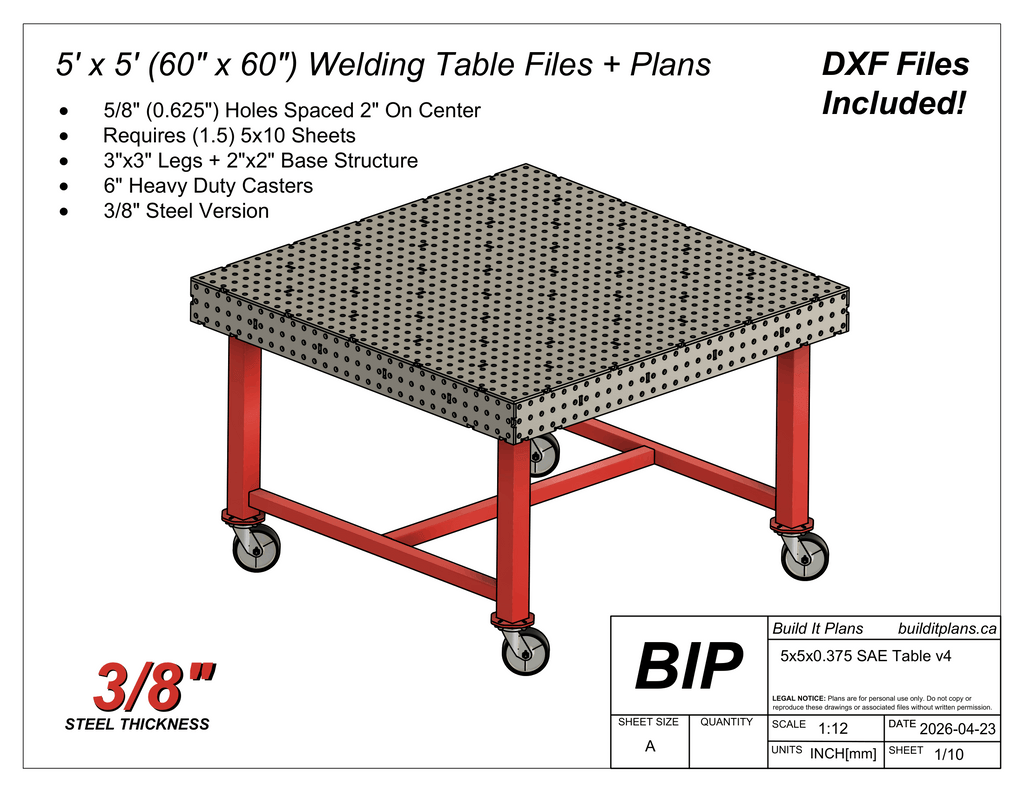

Material Thickness: 3/8" (0.375")

Hole Size: 0.625"

Hole Spacing: 2" on center

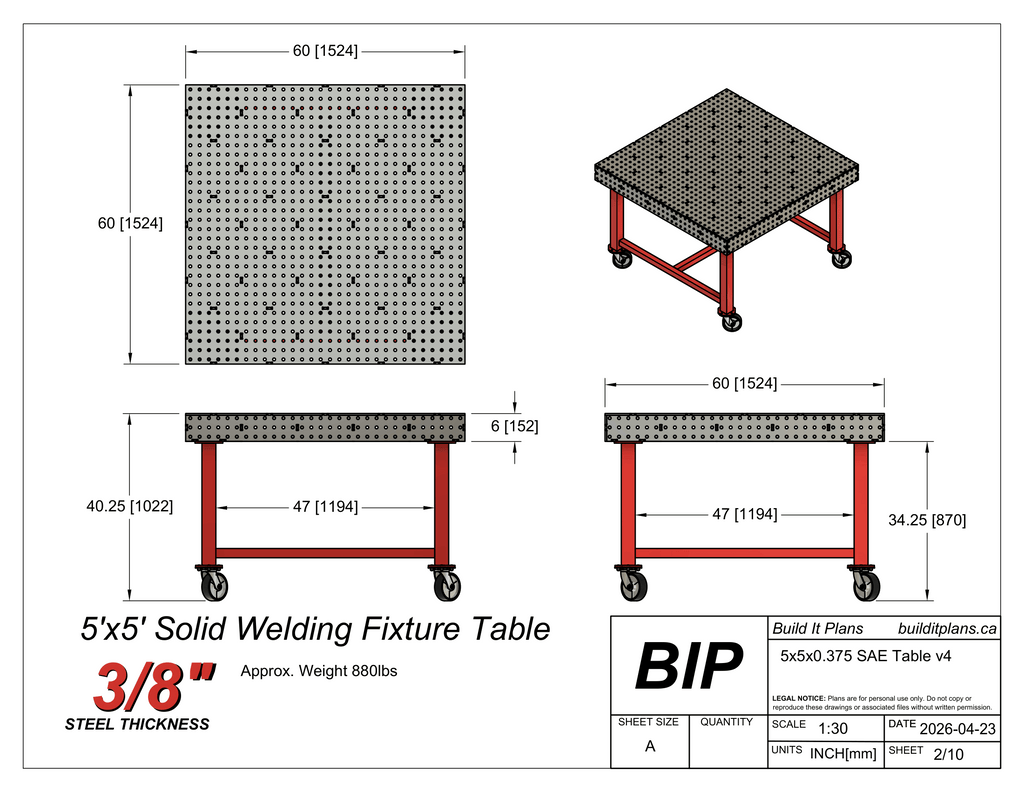

Included Table Sizes: 5'x5' (60" x 60")

Table Top Height: 6"

Material Required: (1.5) 5x10 sheets per table

Files: DXF cut files + detailed PDF instructions


Additional Details

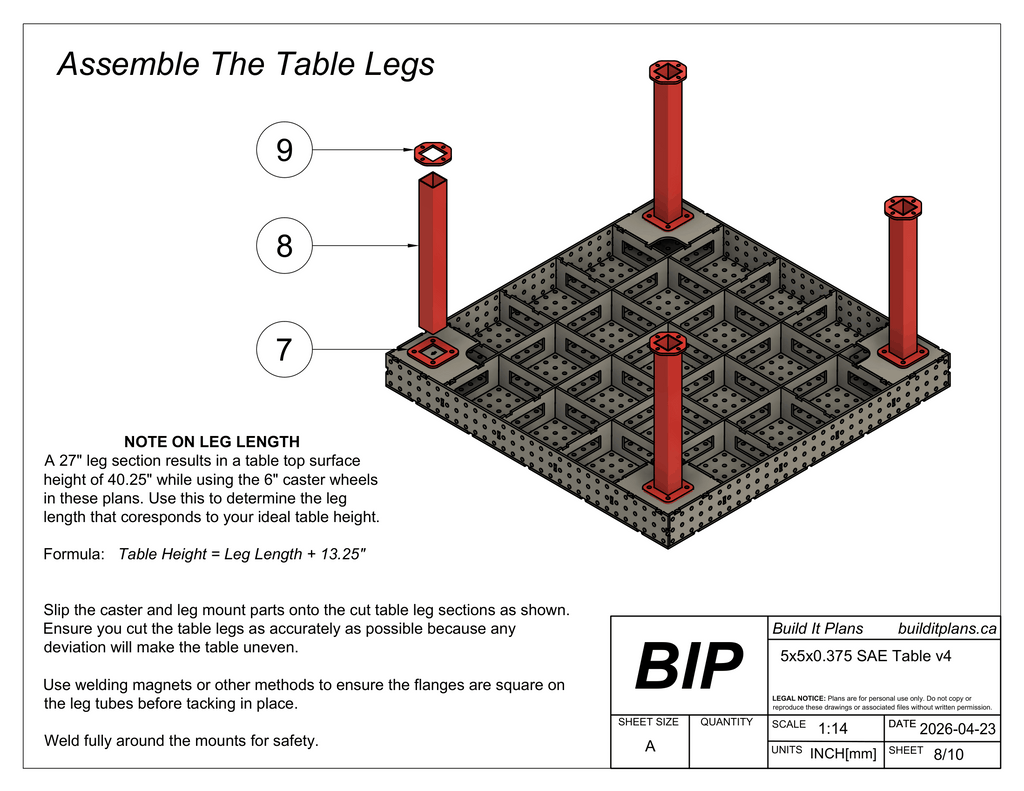

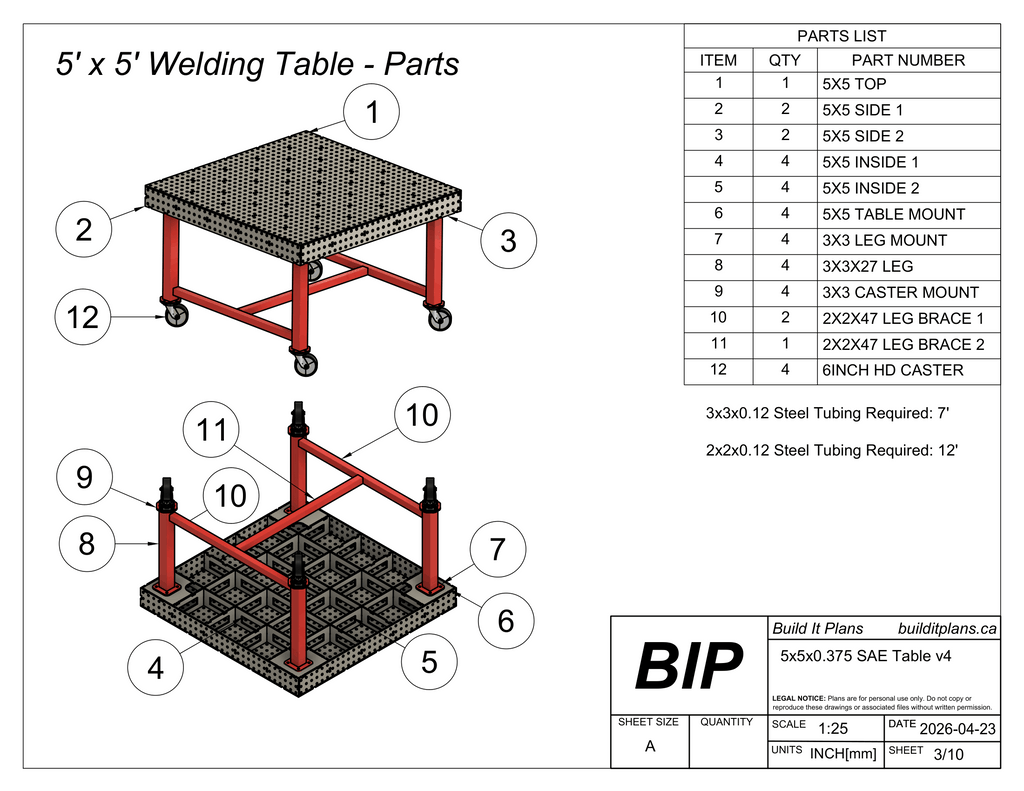

Legs are to be constructed from 3"x3" steel tubing. Base structure is designed to be constructed from 2x2" square tubing. Files are included to make caster mounting brackets for 3x3 square tube.

This listing is for digital files only; no physical product is being sold here.
