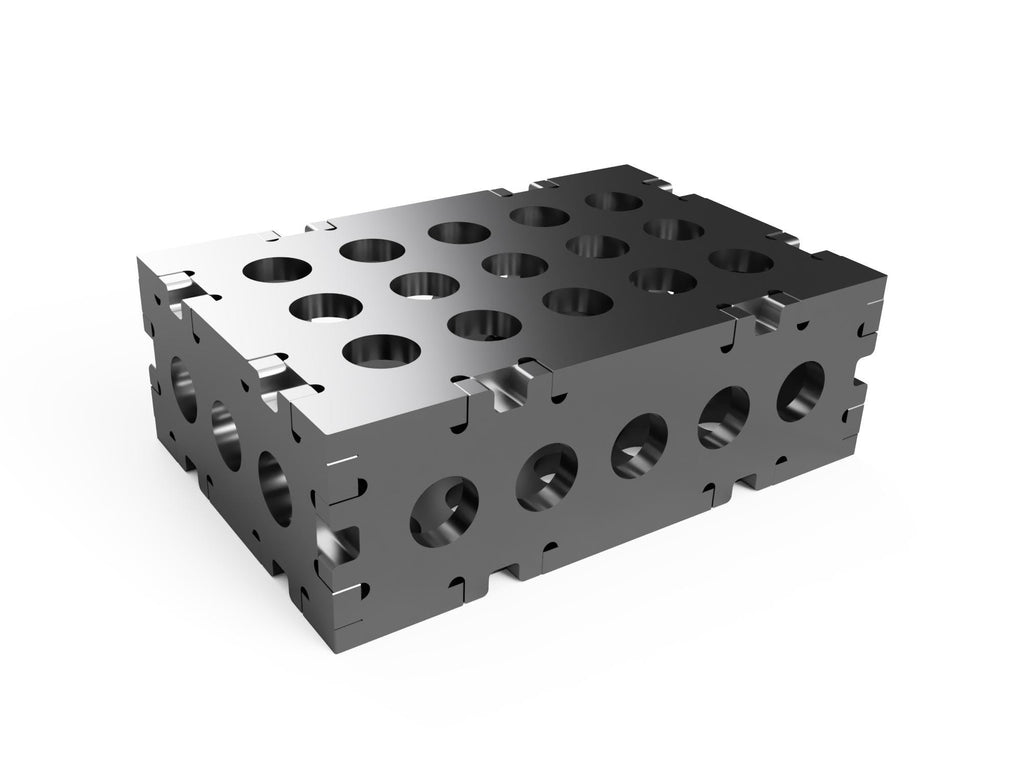

These 50x100x150mm block files are designed to be cut from 6mm thick steel.

The parts are self-aligning or self jigging (the parts locate themselves), simply clamp them together and weld.

Slot and tab interfaces have a 0.1mm clearance for accurate alignment.

Designed to be a simple welding project that can be useful for a lifetime.

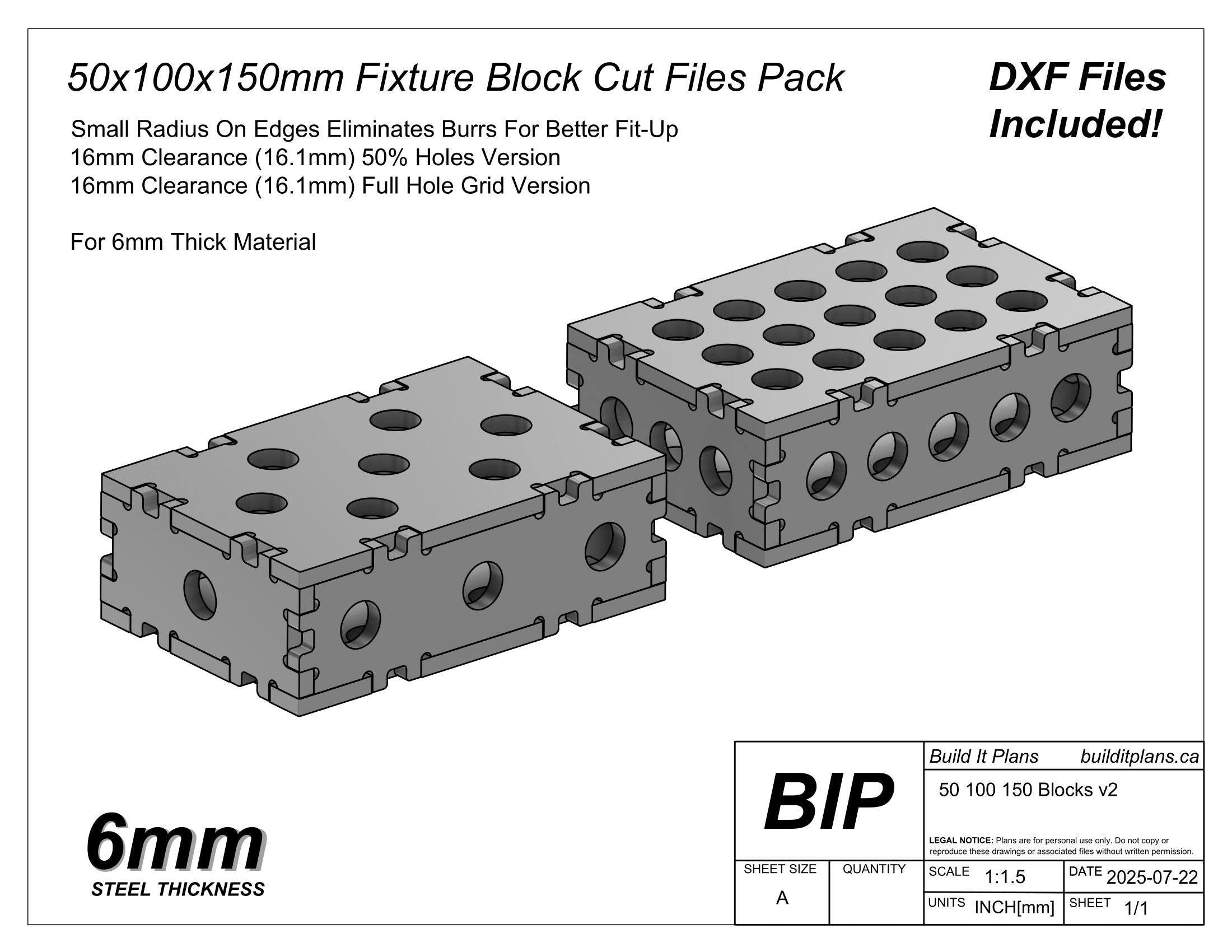

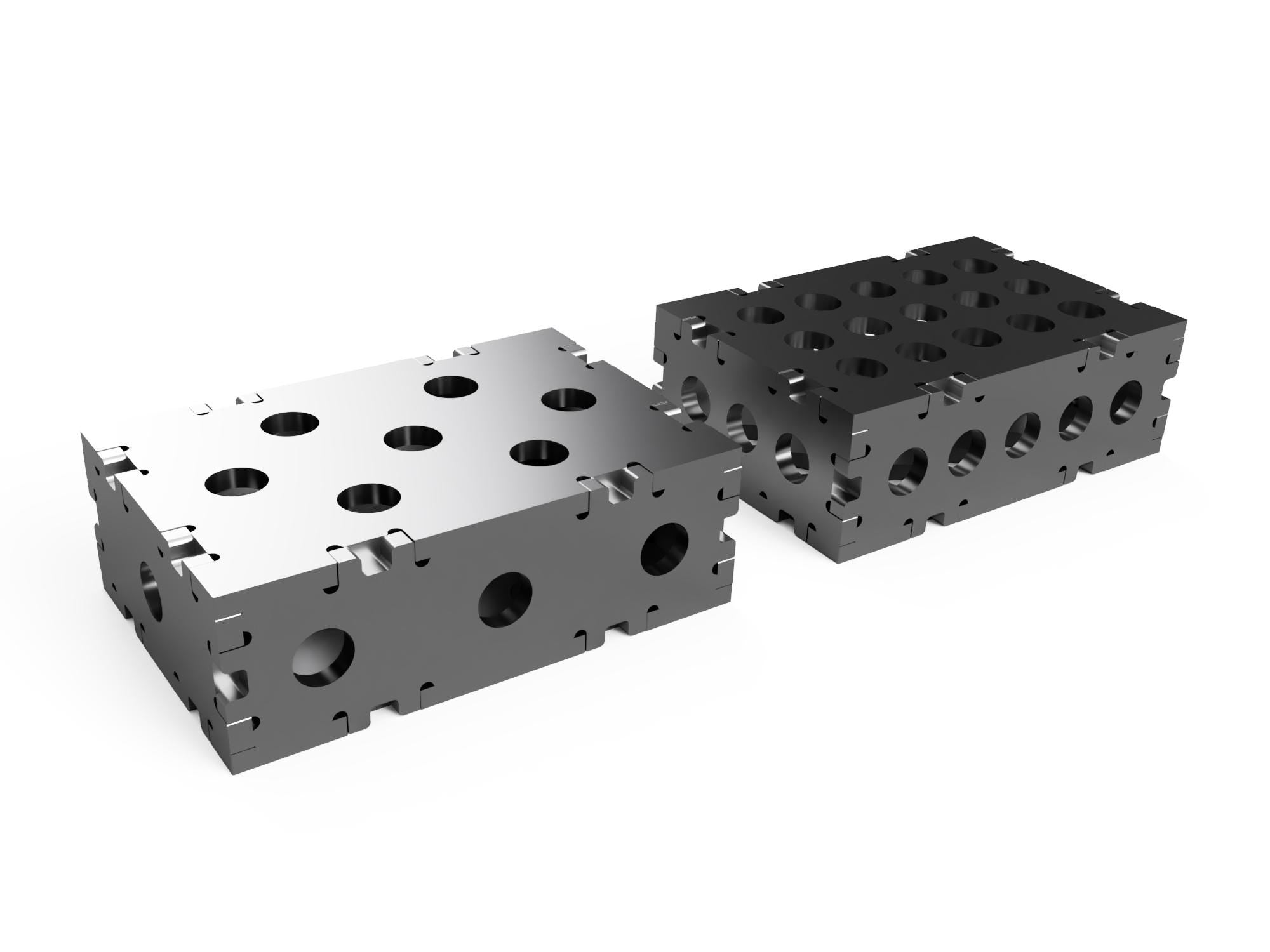

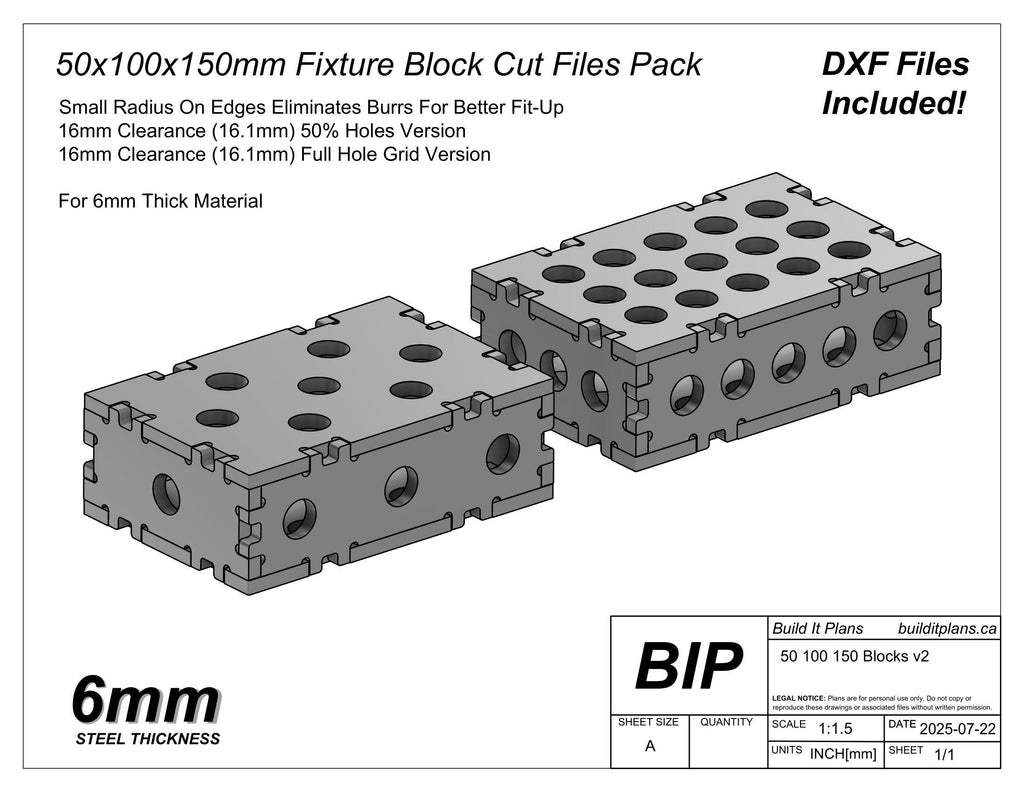

Included model versions:

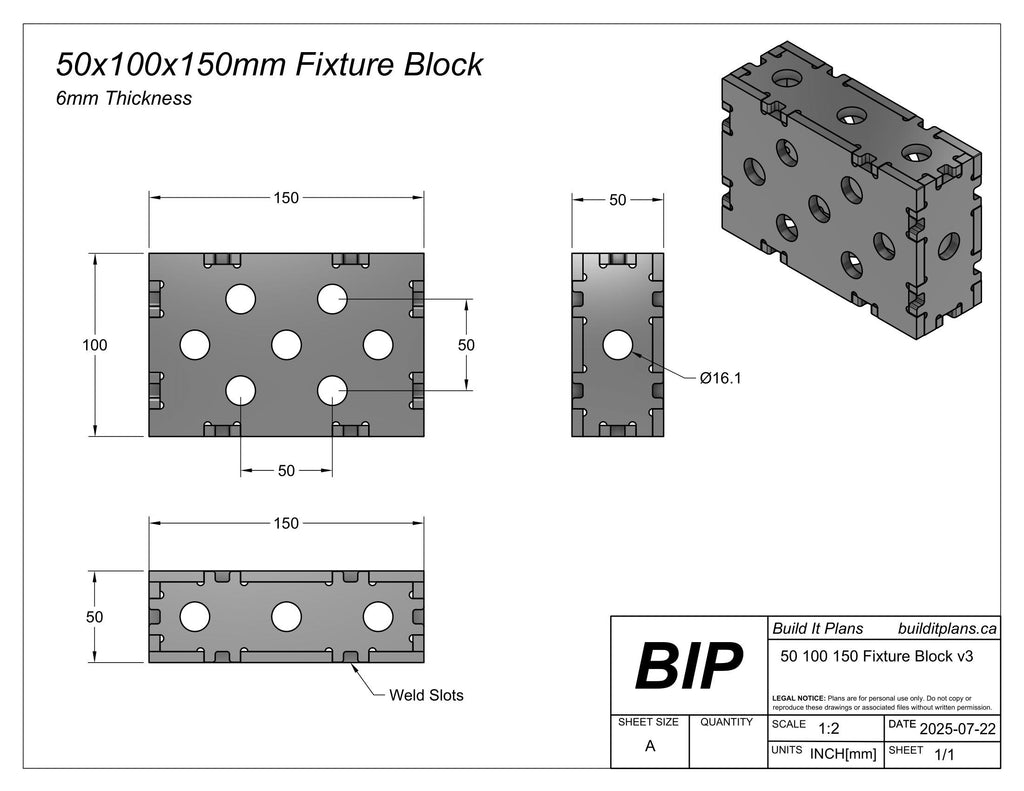

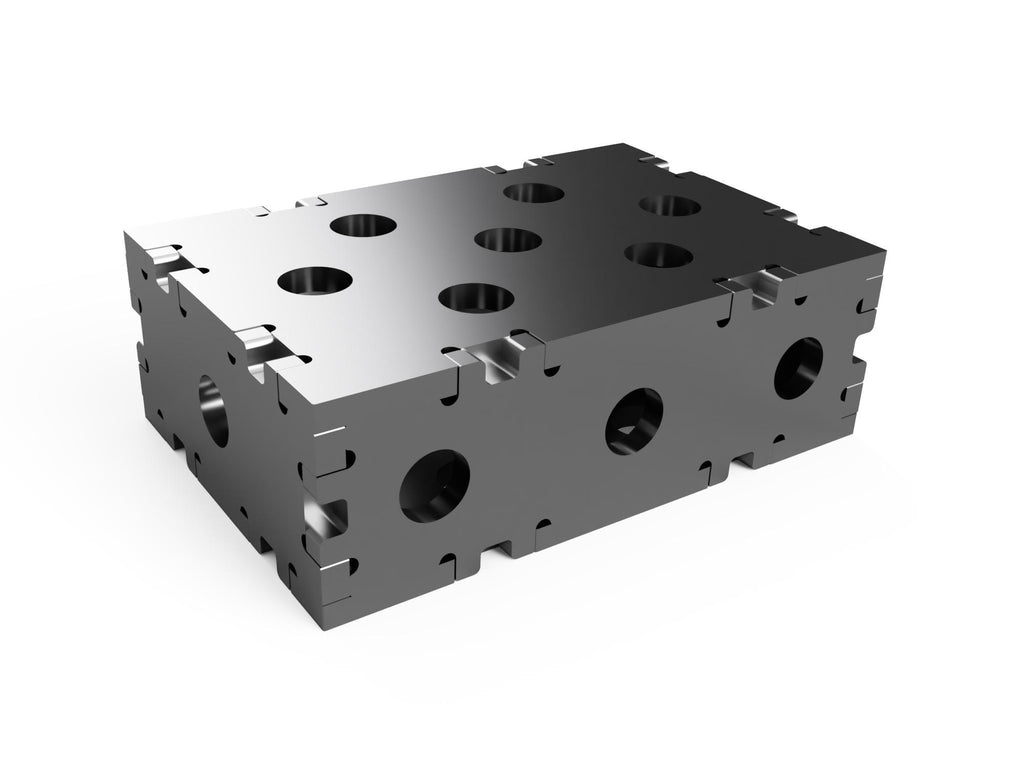

• One version with 16mm clearance holes (16.1mm) on a 50% grid spacing.

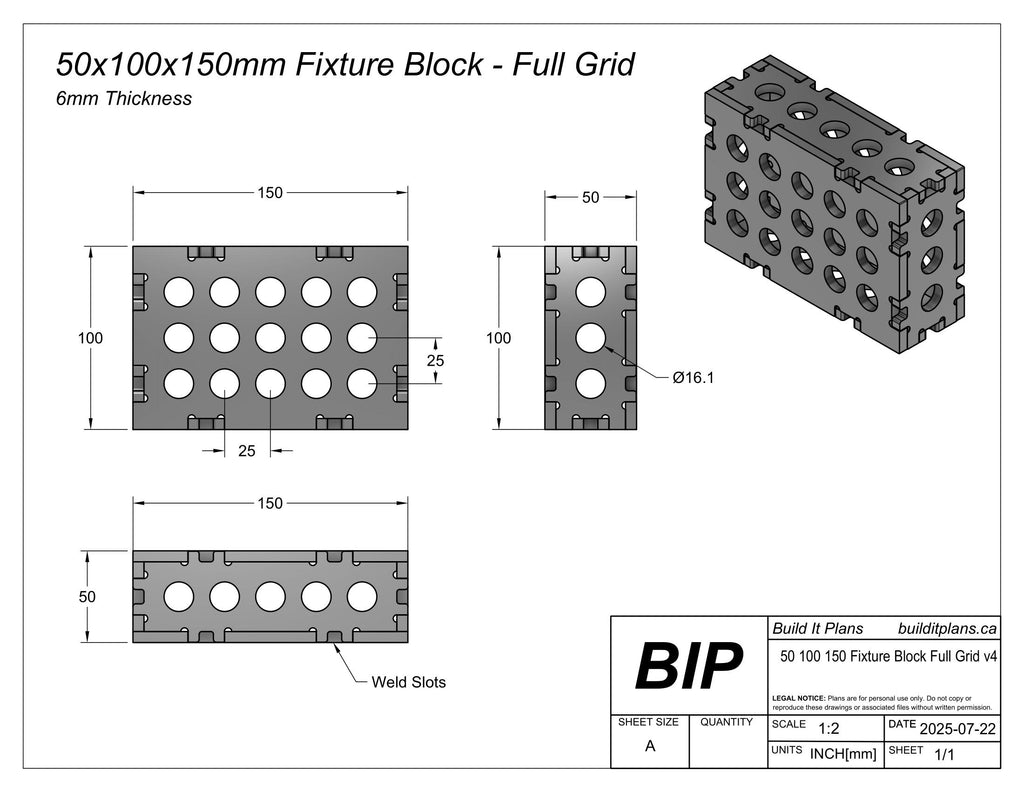

• One version with 16mm clearance holes (16.1mm) on a full 25mm grid spacing.

This listing is for digital files only; no physical product is being sold here.
