This bundle deal offers high quality files and plans at a great value for those who want to save money and build one or more welding tables themselves.

This version is intended for 10mm thick steel. The following sizes are included:

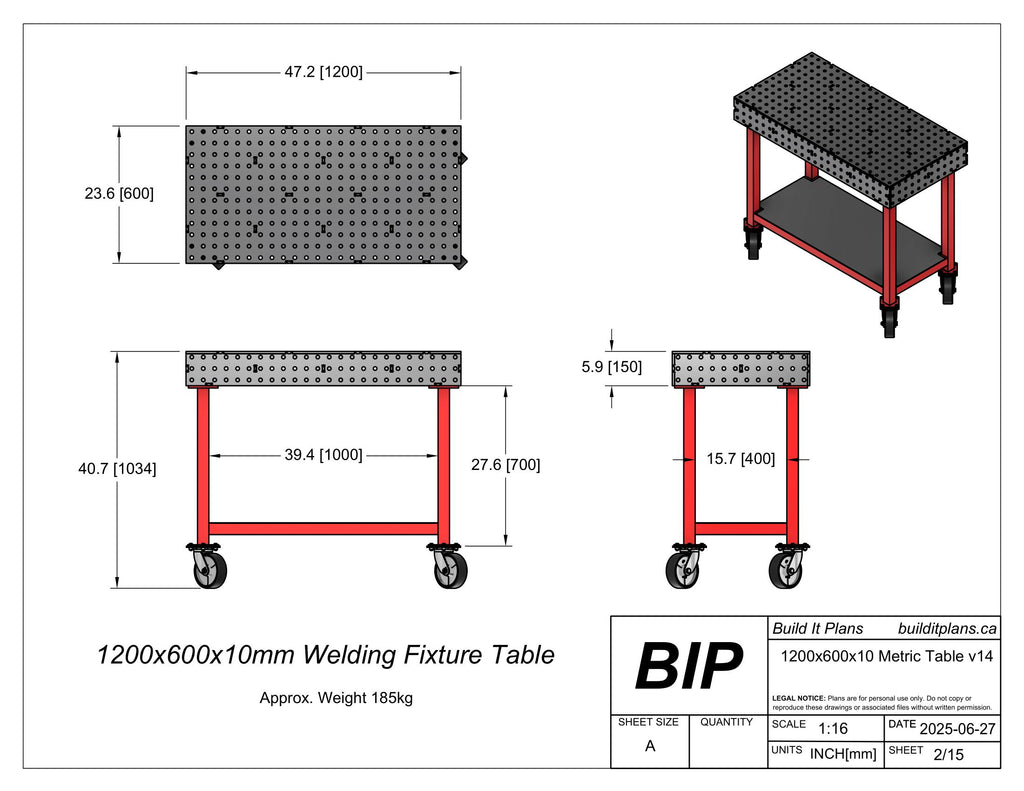

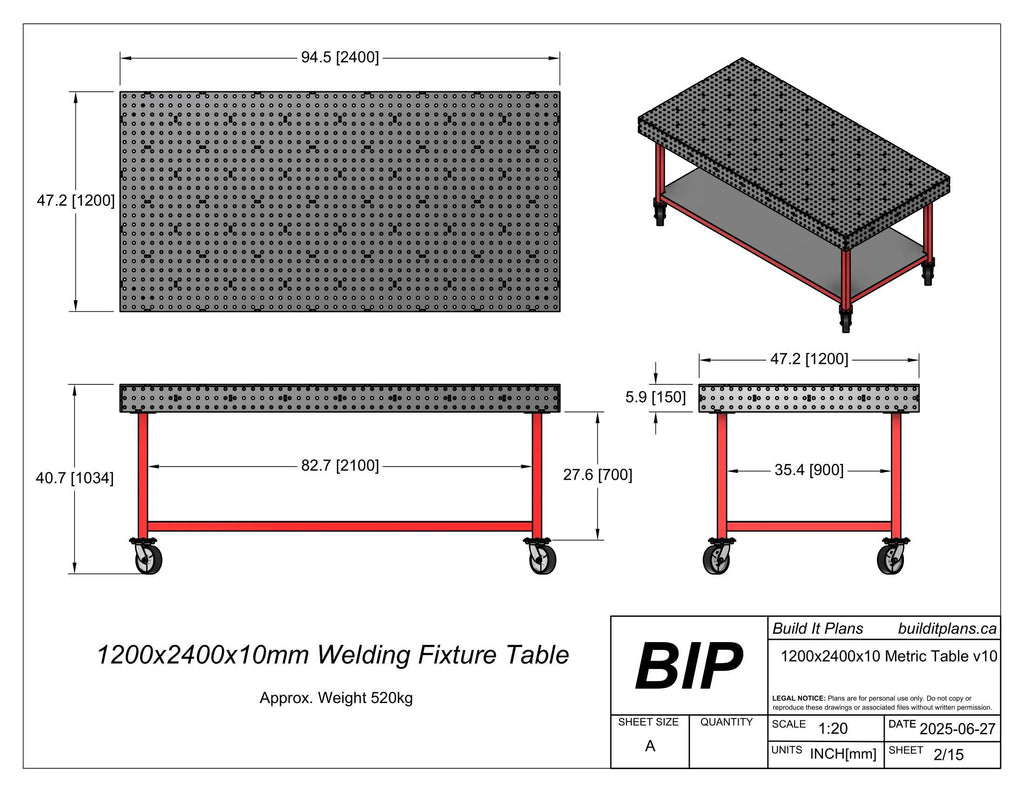

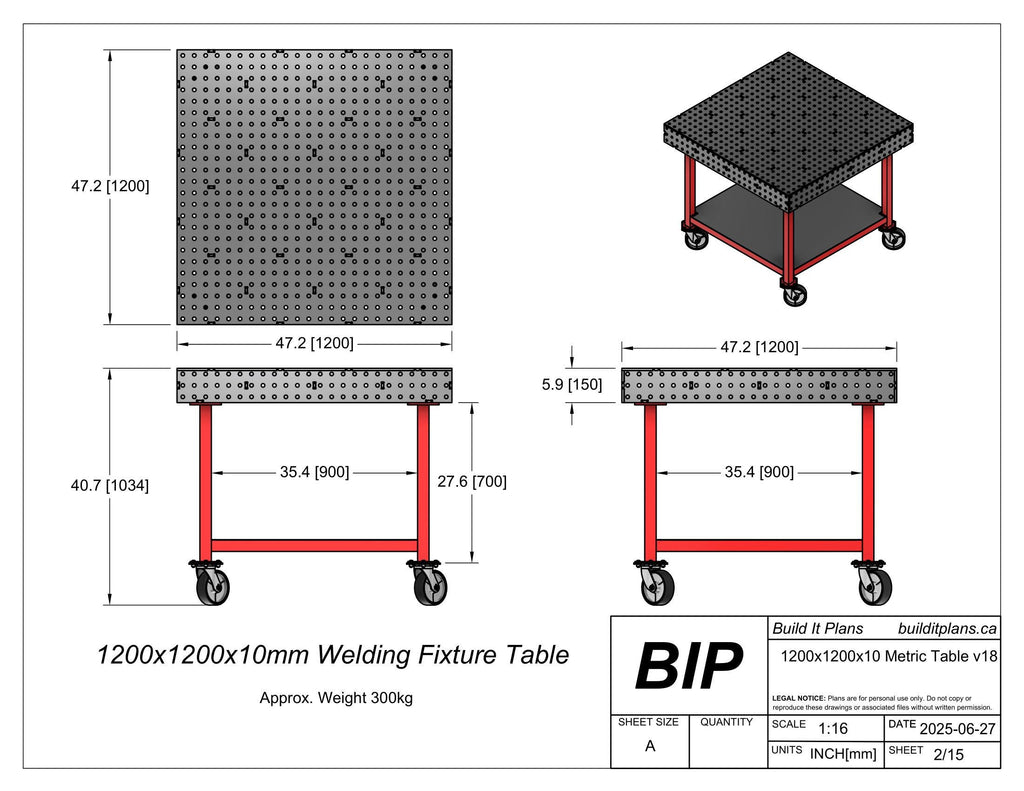

1200x600mm, 1200x1200mm and 1200x2400mm

Holes are sized at 16mm and are spaced 50mm apart on center.

The assembled table tops are 150mm thick and the tables overall height is 1034mm when built to the specifications in these plans.

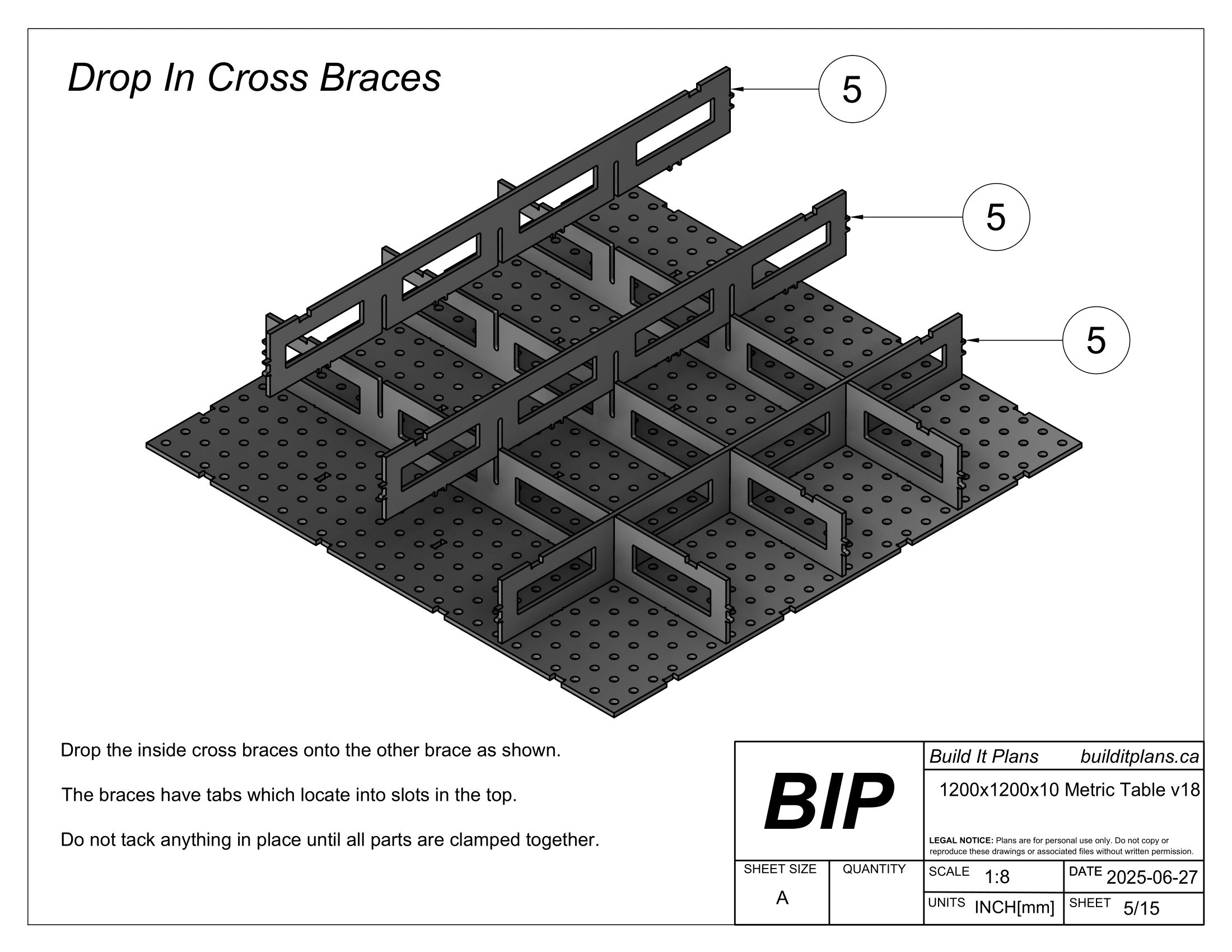

All of the part files have slot and tab features with a 0.25mm clearance for accurate self-alignment.

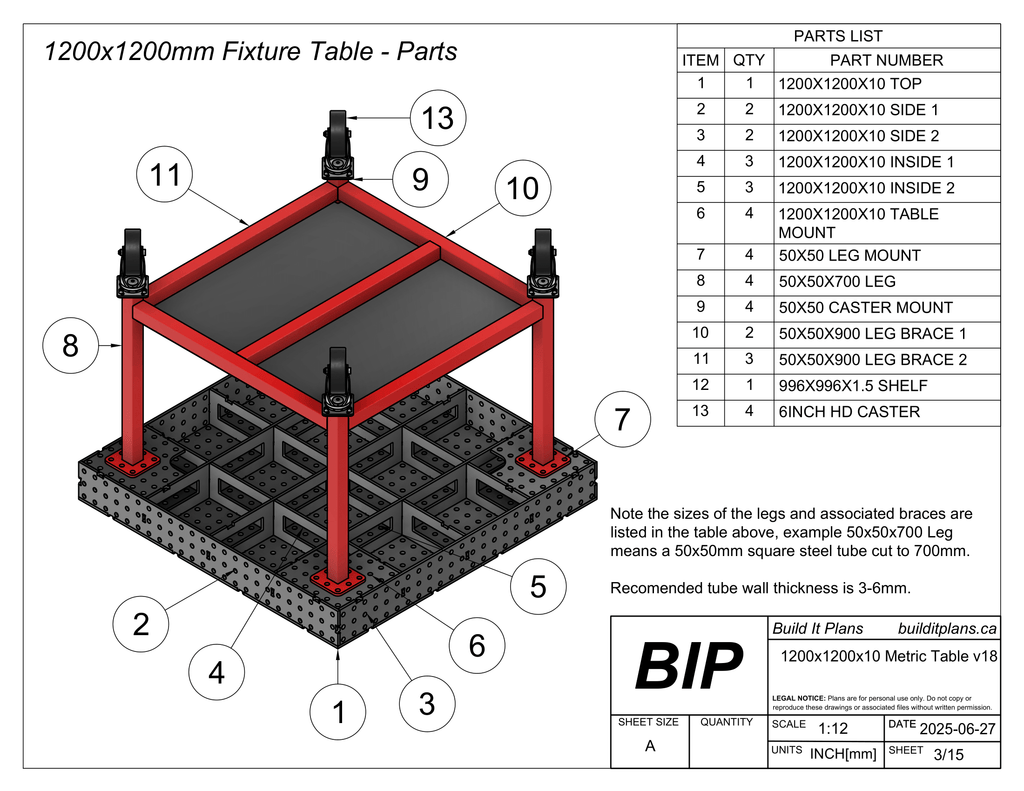

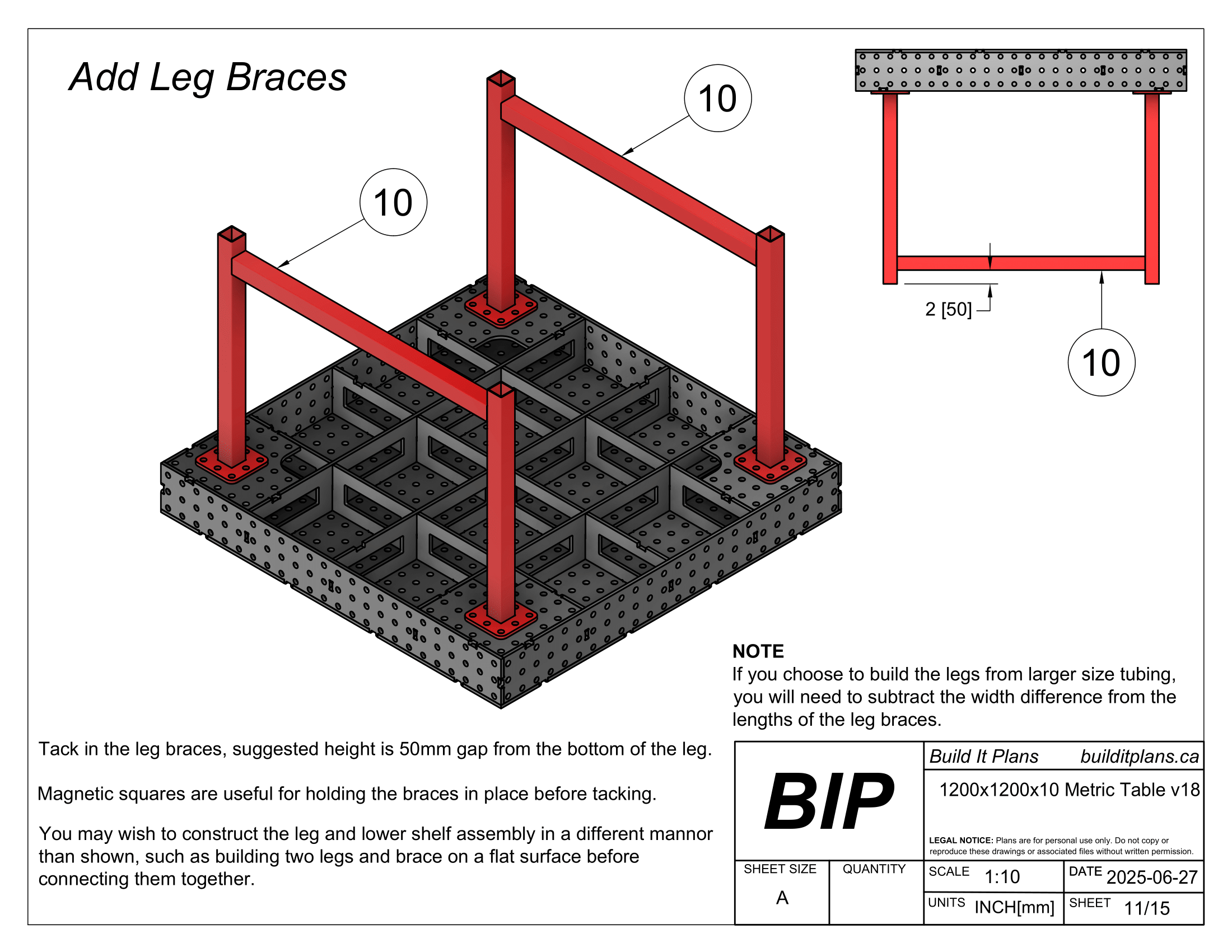

The plans include details on constructing the lower leg and shelf structure, files for caster mounting flanges on 50x50mm, 60x60mm and 75x75mm square steel tubing are also included.

Cut files for the lower shelves in each table size are included, the lower shelf is intended to be cut from 1.5mm steel sheet.

It can be much more affordable to build your own table rather than buying a new one, especially when you do not require the extreme accuracy of a ground or machined fixture table.

These cut file packages come with high quality PDF plans to aid in the assembly of these tables.

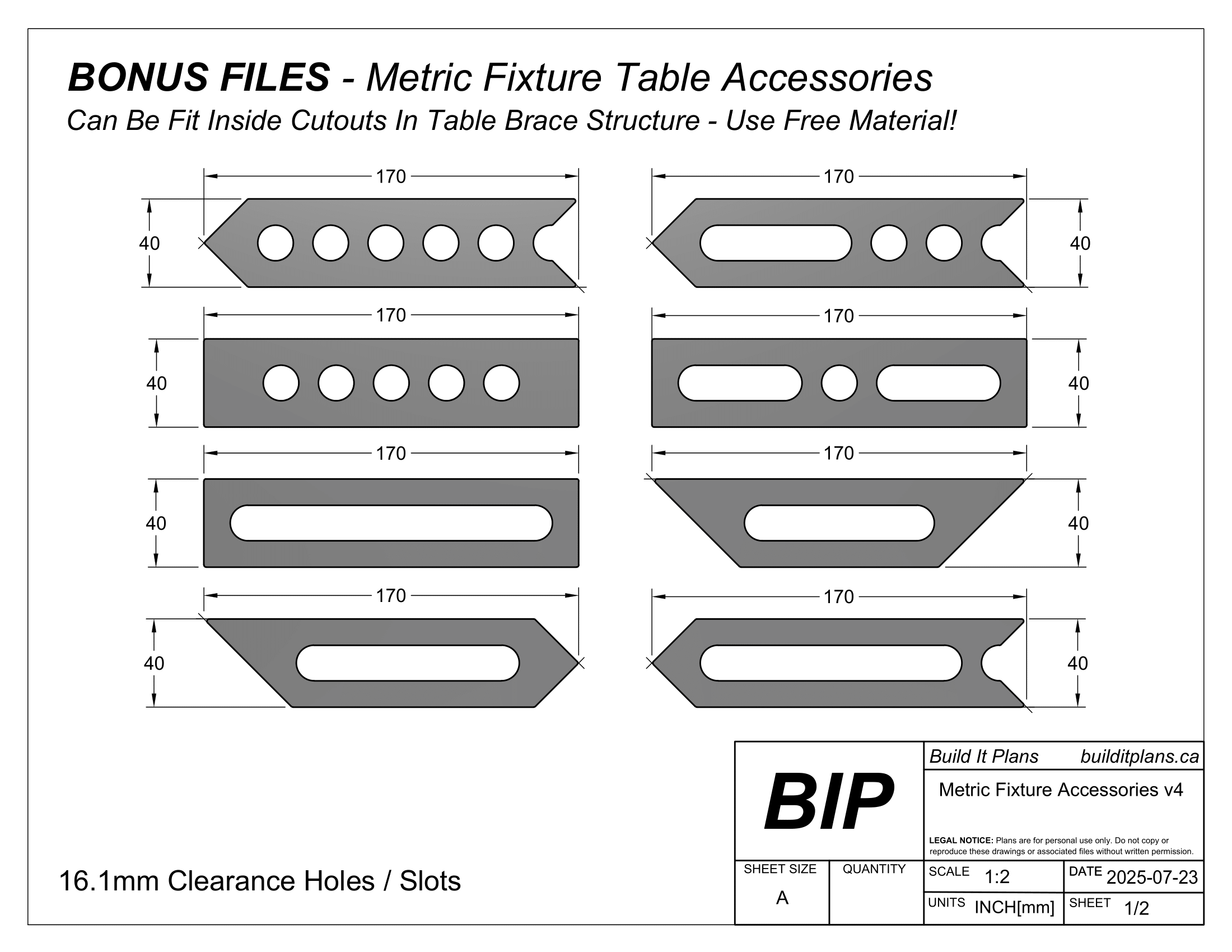

Bonus files are also included for cutting your own fixturing accessories, which can be nested inside of the web cutouts in the table structure if you are cutting with a laser.

This listing is for digital files only; no physical product is being sold here.
