100mm Post Bracket DXF File Bundle - For 100x100mm Wood Posts

100mm Post Bracket DXF File Bundle - For 100x100mm Wood Posts
$19.95

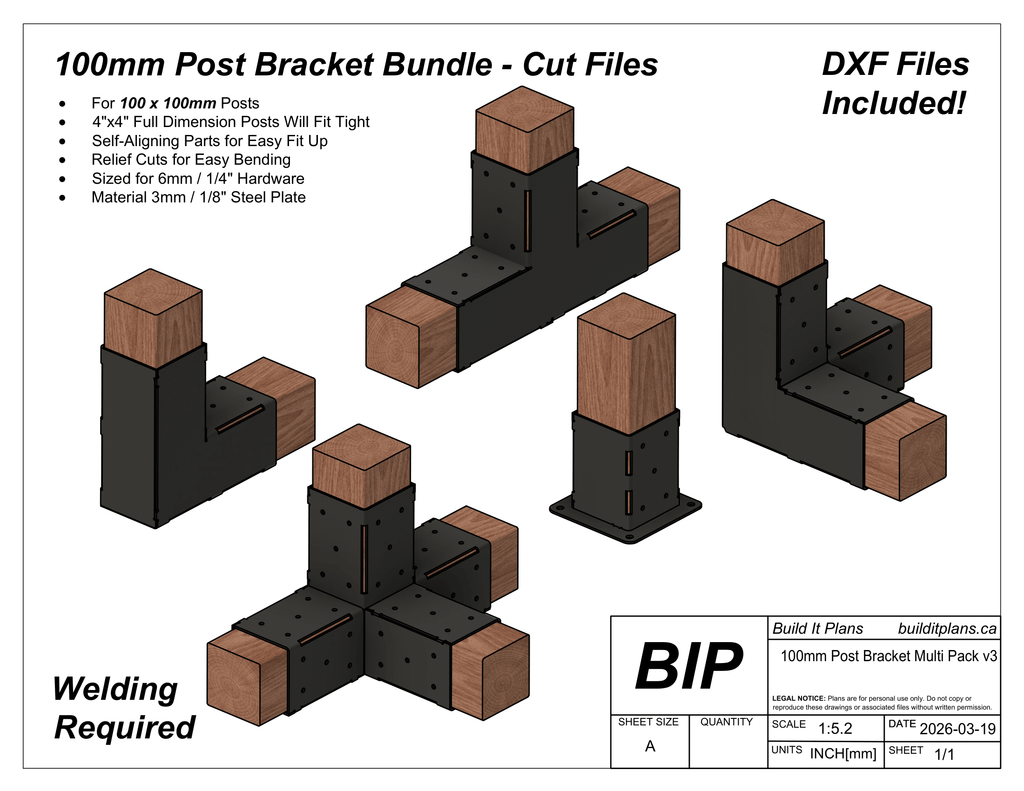

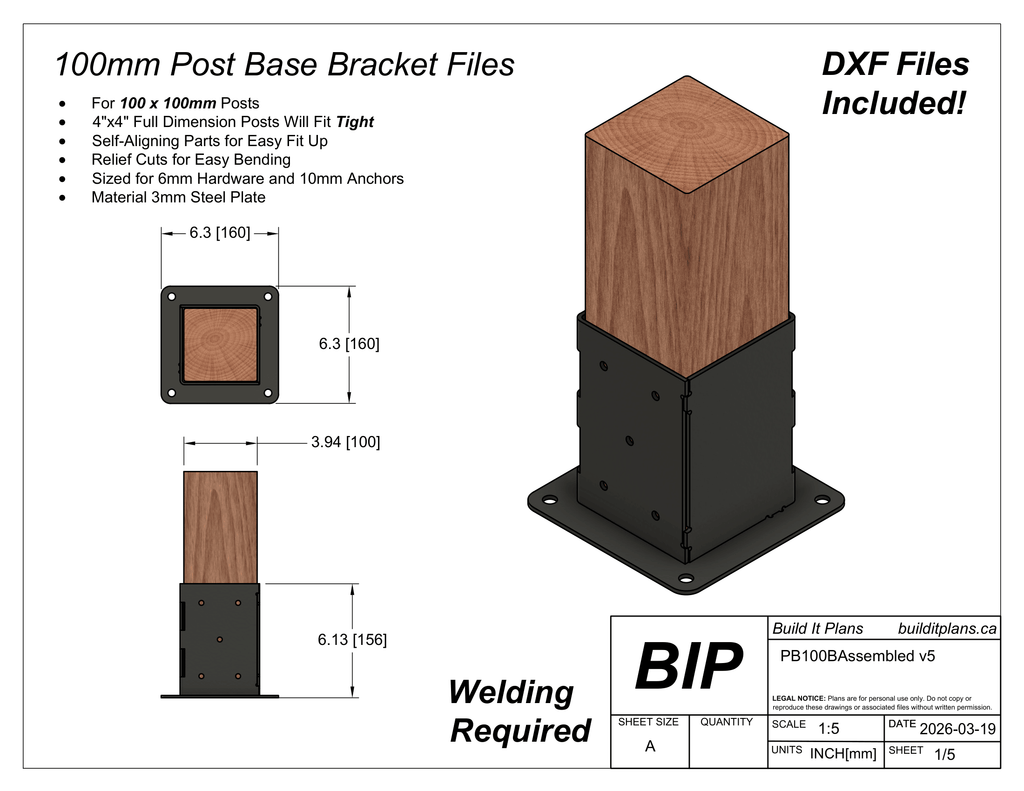

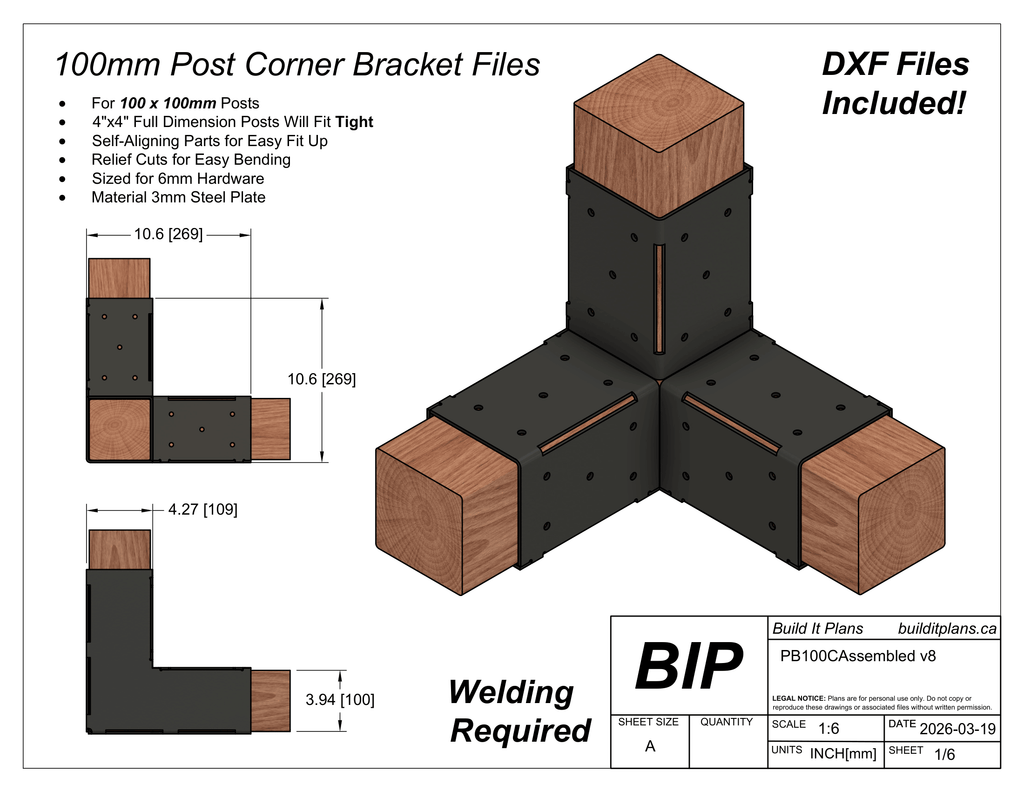

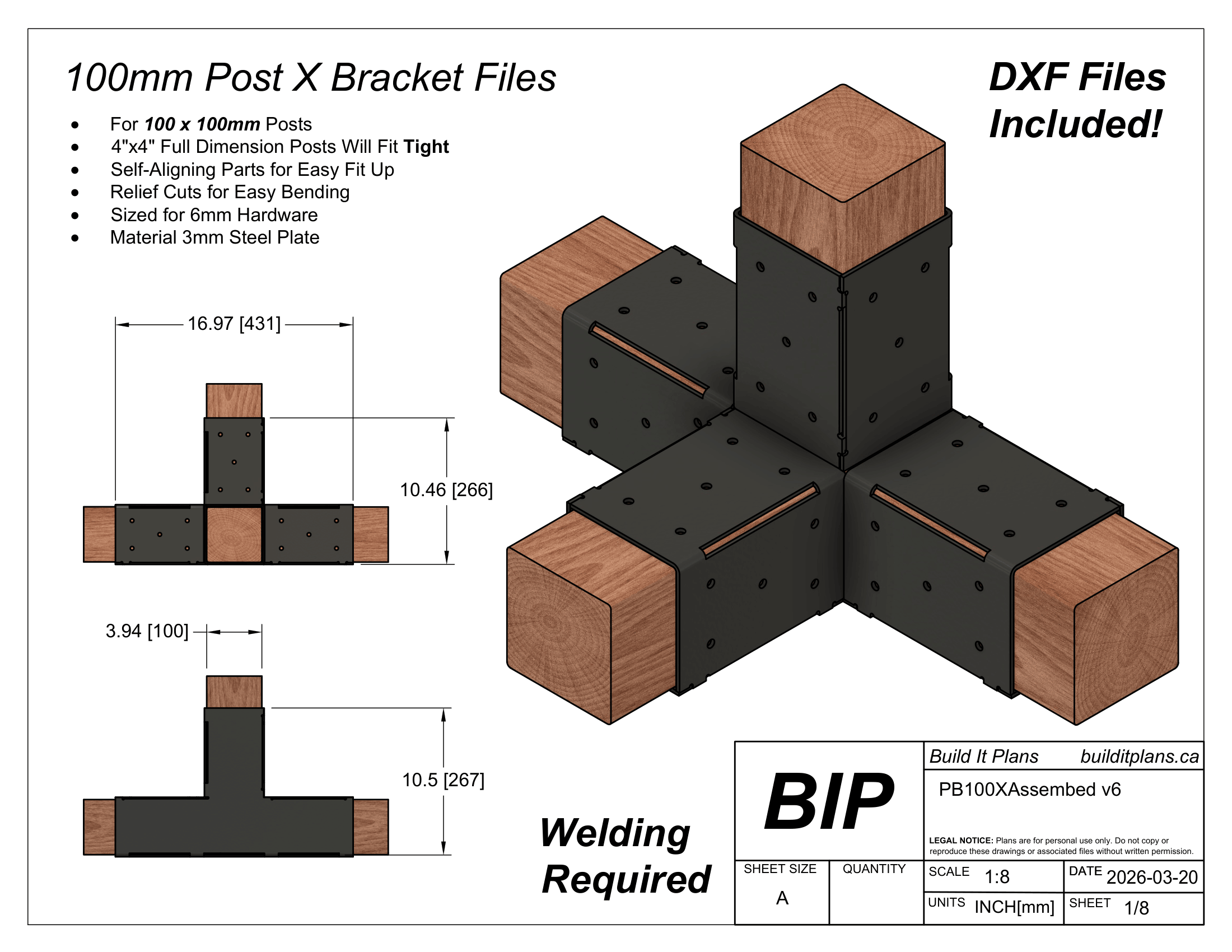

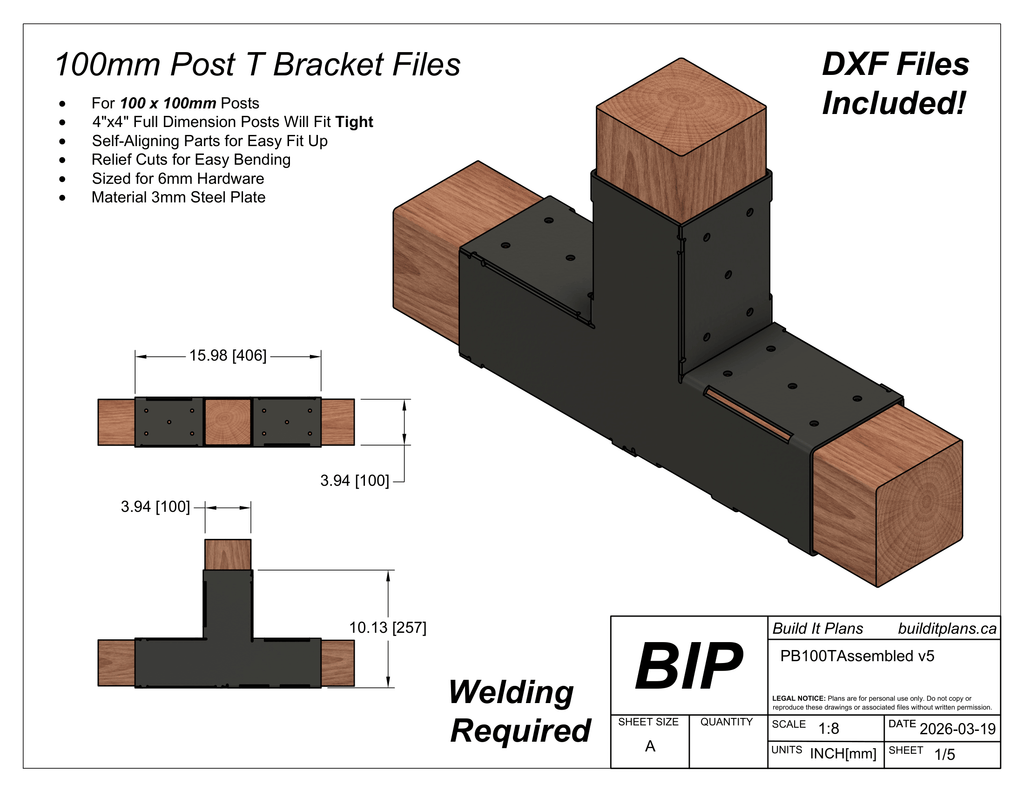

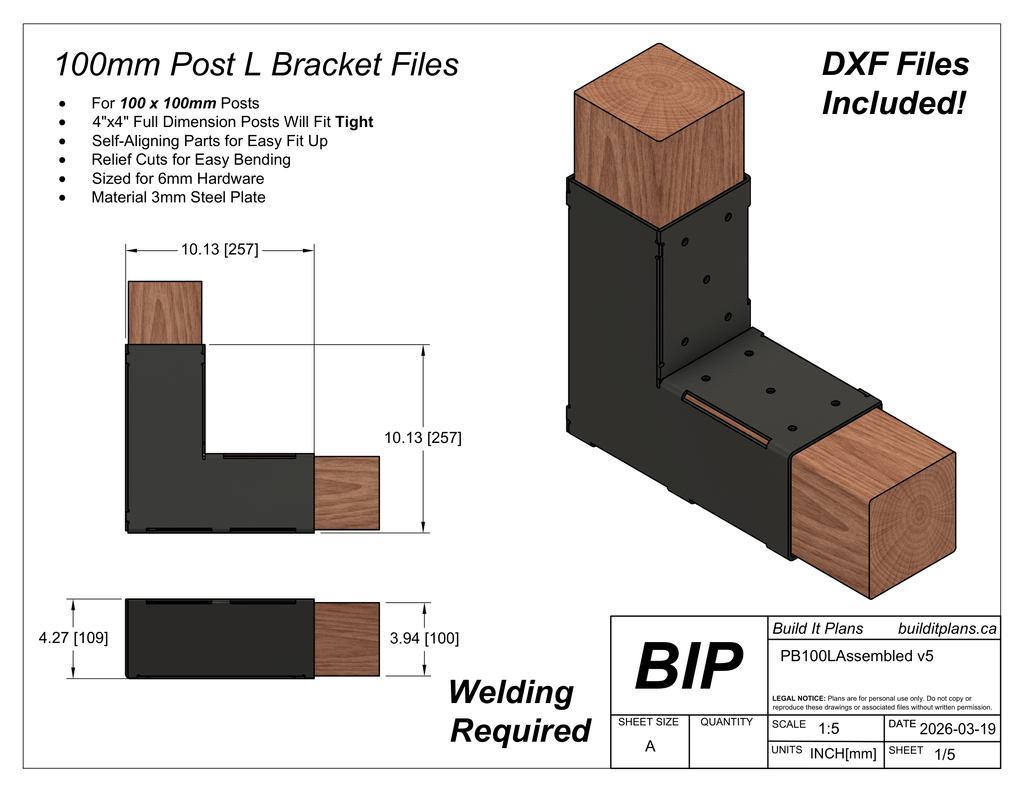

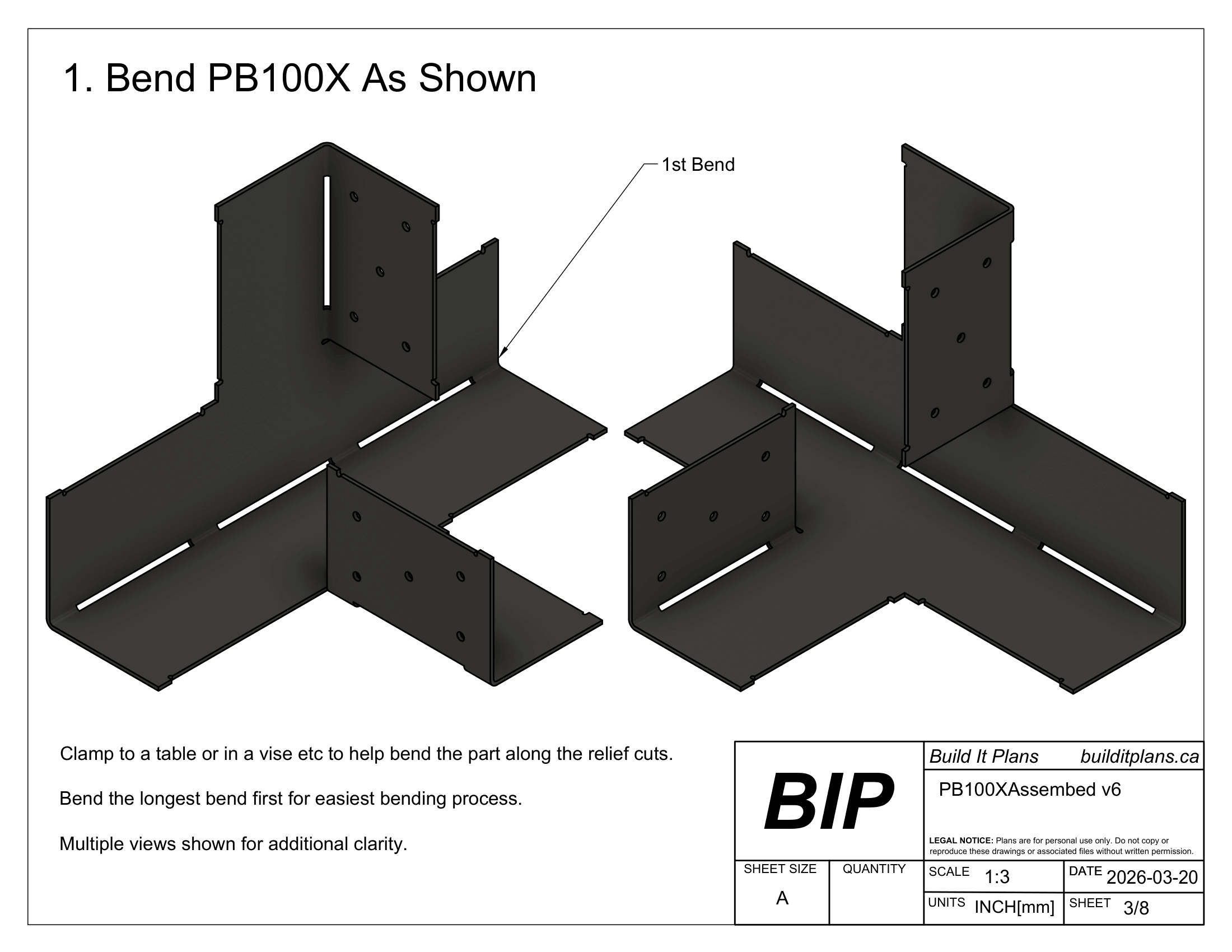

This DXF file download bundle includes DXF cut files and PDF guides to make your own slip-in post brackets for 100 x 100mm wood posts. The holes are sized for 6mm wood screws (max).

These brackets have been designed to be cut on most CNC plasma, waterjet and laser cutting machines. They include corner reliefs and self-aligning tabs to make part fit up and welding easy.

These brackets are designed to be cut from 1/8" / 3mm / 11ga steel as detailed in the guide.



This listing is for digital files only; no physical product is being sold here.
