Make your own 4'x2' welding fixture table from 1/4" steel plate and 2"x2" square steel tubing for the legs. 0.06" steel sheet is recommended for the lower shelf.

There are two versions of 5/8" hole size parts included: Standard are sized at 0.630" / 16mm and are spaced 2" apart on center. Additional version holes sized exactly at 0.625" for more accurate cutting machines.

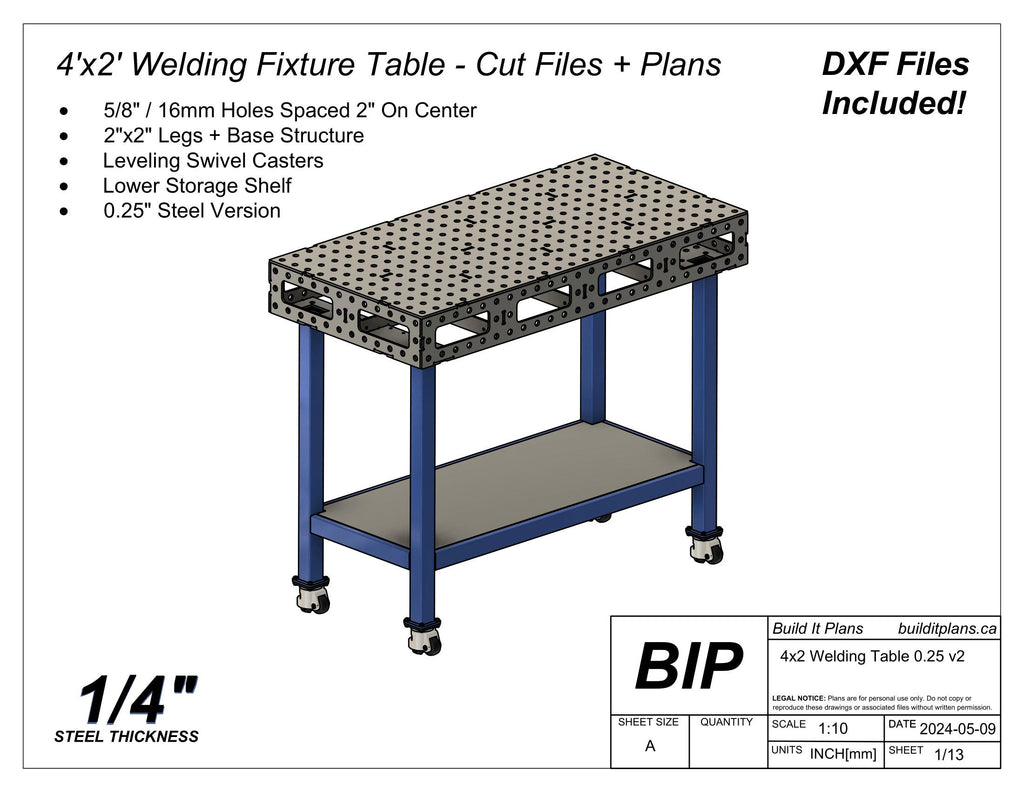

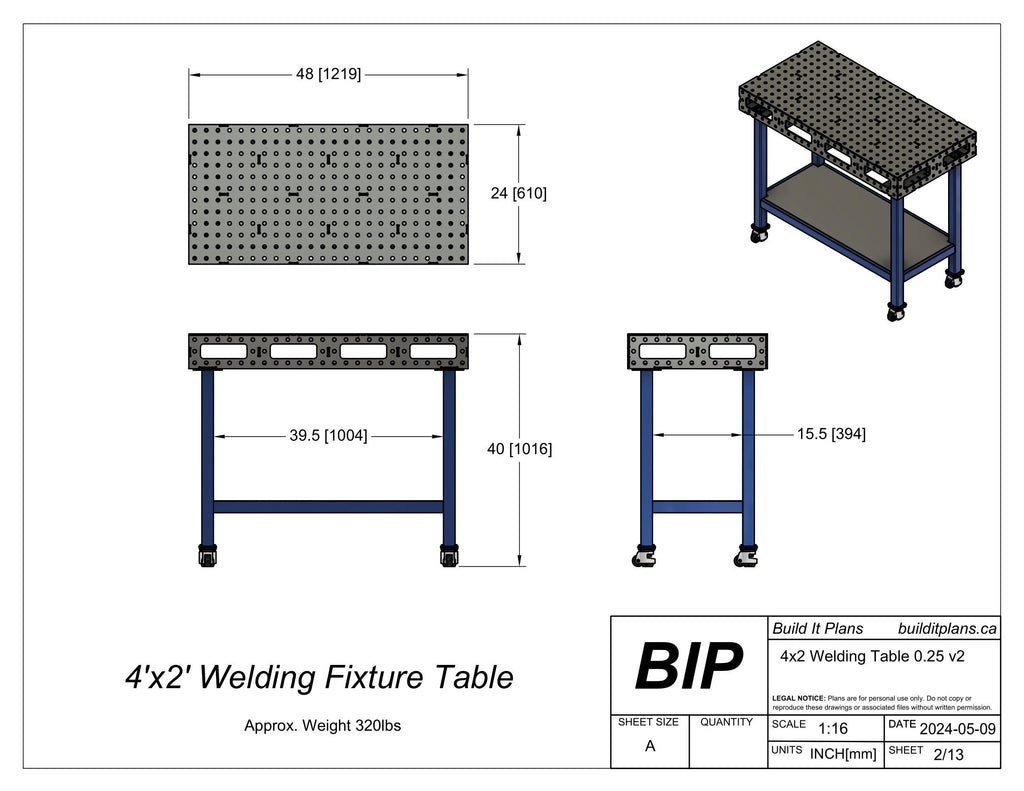

These plans feature 26 detailed pages of assembly and part drawings as well as the DXF cut files for all flat CNC cut parts.

This table stands at 40" tall and is designed to use adjustable swiveling castors.

The table is intended to be assembled and used by people with shop experience - the build plans do not detail how to use the table.

Now included is universal leg mounting bracket files which allow you to use legs from other vendors with 4 hole square mounting patterns from 3.5" x 3.5" to 4.5" x 4.5" center to center (for BIP tables made from 0.25" thick material). The leg mounting holes accept bolts up to 0.5" diameter.

The slot and tab features have a 0.02" - 0.04" clearance, which should suit laser and waterjet tables very well. Plasma users may need to clean up the tabs if the fit up is tight, depending on the accuracy of your plasma table.

This project requires welding and CNC cutting.
